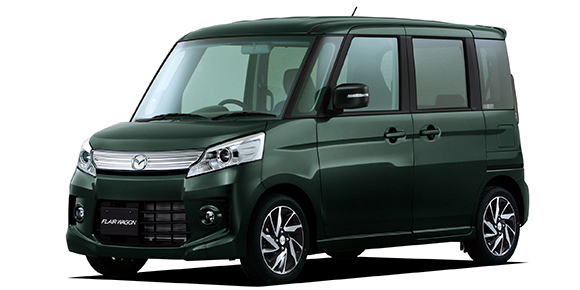

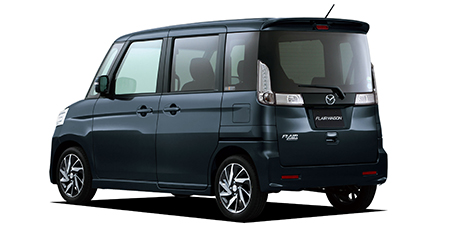

MAZDA FLAIR WAGON CUSTOM STYEL XT

MAZDA FLAIR WAGON CUSTOM STYEL

MM32S · XT

Description

Modification: XT
Chassis ID: MM32S
Dates releasing: 2013.10~
Base price, ¥: DBA-MM32S
Body size: 3395x1475x1740
Interior (LxWxH): 2215x1320x1375
Wheelbase: 2425
Track f/r: 1295mm/1290mm
Full weight, kg: 950
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム:横滑り防止機構)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: R06A
Type: water cooling inline 3 cylinder DOHC 12-valves IC-turbo
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 9.1
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 64ps(47kW)/6000rpm
Max torque, Nm/rpm: 9.7kg m(95N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 27 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: I.T.L.(アイソレーテッドトレーリング &#12522
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/55R15 75V
Rear wheel: 165/55R15 75V
Min turn diameter, m: 4.6

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.006~0.550	—	—	—	—	—	—	—	—	3.771

Available colors

black / Bluish Black III Pearlwhitegreen / Other greenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearl / Pearl WhiteGold
