JDM Vehicle Catalog

Vehicle Specs

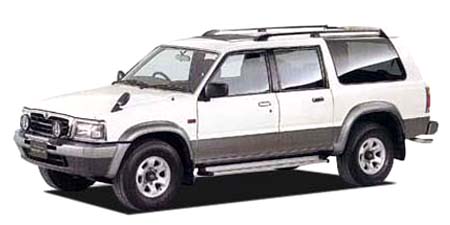

MAZDA PROCEED MARVIE BASEGRADE

MAZDA PROCEED MARVIE

UVL6R · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: UVL6R
Dates releasing: 1996.3~
Base price, ¥: KD-UVL6R
Body size: 4950x1810x1800
Interior (LxWxH): 2730x1400x1165
Wheelbase: 3000
Track f/r: 1480mm/1470mm
Full weight, kg: 1780
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: WL-T
Type: water cooling inline 4 cylinder OHC 12-valves IC-turbo (Diesel)
Bore x stroke, mm: 93.0x92.0
Engine size, cc: 2499
Compression ratio: 19.8
Fuel injection: 分配 type 燃料噴射 type (過給機付)
Max power, hp/rpm: 125ps(92kW)/4000rpm
Max torque, Nm/rpm: 30.0kg m(294.2N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: ウイッシュボーン type トーションバー&
Rear suspension: 半楕円リーフ
Front brake: disk
Rear brake: Drum
Front wheel: 265/70R15 110S
Rear wheel: 265/70R15 110S
Min turn diameter, m: 6.0

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.250	2.356	1.428	1.000	0.827	—	—	—	3.656

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
