JDM Vehicle Catalog

Vehicle Specs

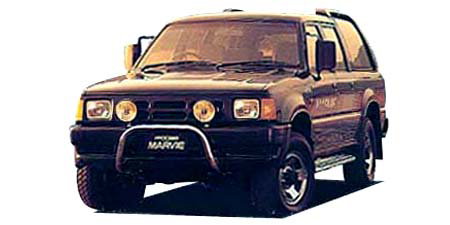

MAZDA PROCEED MARVIE BASEGRADE

MAZDA PROCEED MARVIE

UV66R · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: UV66R
Dates releasing: 1994.2~
Base price, ¥: E-UV66R
Body size: 4950x1720x1800
Interior (LxWxH): 2750x1400x1135
Wheelbase: 3000
Track f/r: 1440mm/1430mm
Full weight, kg: 1790
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: G6
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 92.0x98.0
Engine size, cc: 2605
Compression ratio: 8.4
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 120ps(88kW)/4500rpm
Max torque, Nm/rpm: 20.6kg m(202.0N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 56 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 13.9

Steering & suspension

Steering: Other
Front suspension: Double wishbone type (トーションバーばね)
Rear suspension: 半楕円リーフ
Front brake: disk
Rear brake: Drum
Front wheel: 225/80R15
Rear wheel: 225/80R15
Min turn diameter, m: 6.4

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.786	1.546	1.000	0.694	—	—	—	—	2.272

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
