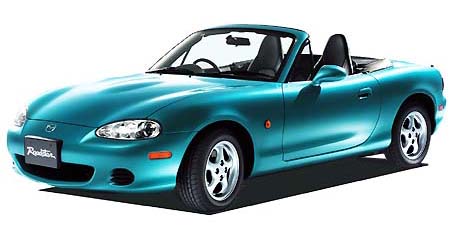

MAZDA ROADSTER SP

MAZDA ROADSTER

NB6C · SP

Description

Modification: SP
Chassis ID: NB6C
Dates releasing: 2002.7~
Base price, ¥: GH-NB6C
Body size: 3955x1680x1235
Interior (LxWxH): 865x1355x1025
Wheelbase: 2265
Track f/r: 1415mm/1440mm
Full weight, kg: 1060
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

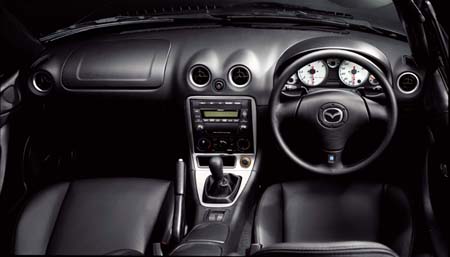

Comfort

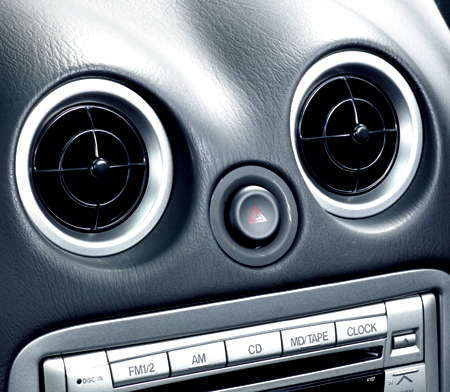

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×

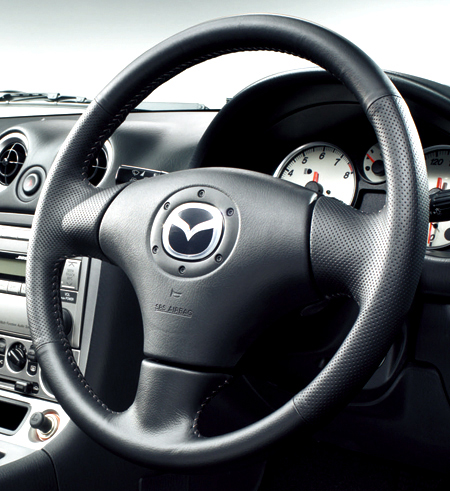

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×

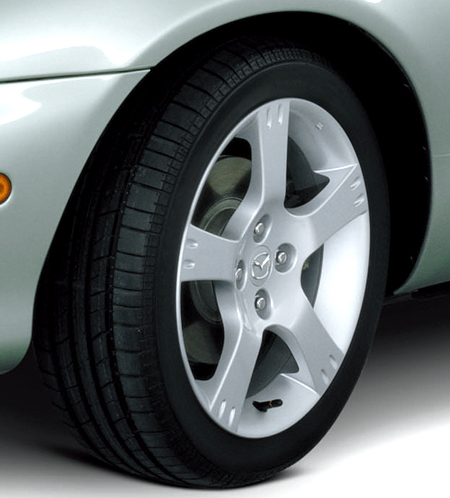

Alloy wheels: 14 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B6-ZE[RS]
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x83.6
Engine size, cc: 1597
Compression ratio: 9.4
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 120ps(88kW)/6500rpm
Max torque, Nm/rpm: 14.2kg m(139N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 48 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/60R14 82H
Rear wheel: 185/60R14 82H
Min turn diameter, m: 4.6

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): ◯ / ◯
Wiper: ×

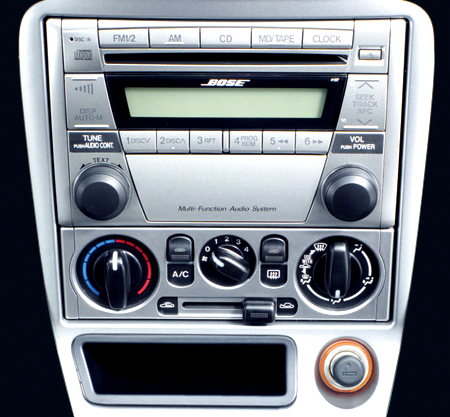

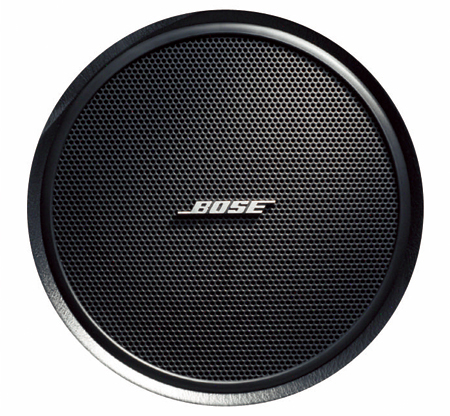

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Brilliant Blackwhite / Pure Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
