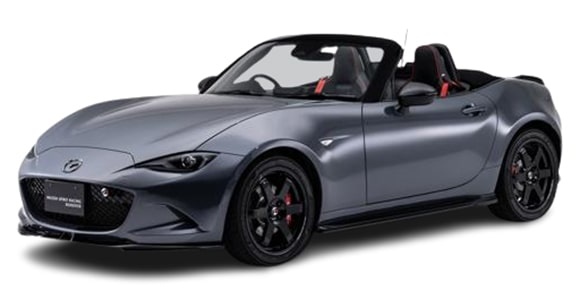

MAZDA ROADSTER SPIRIT RACING ROADSTER

MAZDA ROADSTER

NDERE · SPIRIT RACING ROADSTER

Description

Modification: SPIRIT RACING ROADSTER
Chassis ID: NDERE
Dates releasing: 2026.1~
Base price, ¥: 5BA-NDERE
Body size: 3915x1735x1245
Interior (LxWxH): 940x1425x1055
Wheelbase: 2310
Track f/r: 1495mm/1505mm
Full weight, kg: 1070
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム:横滑り防止機構)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

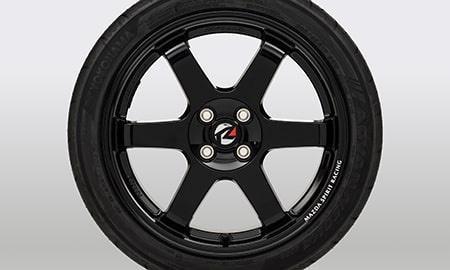

Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: PE-VP[RS]
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 83.5x91.2
Engine size, cc: 1997
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 184ps(135kW)/7000rpm
Max torque, Nm/rpm: 20.9kg m(205N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/45R17
Rear wheel: 205/45R17
Min turn diameter, m: 4.7

Gearbox

Number of stages: 6MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×

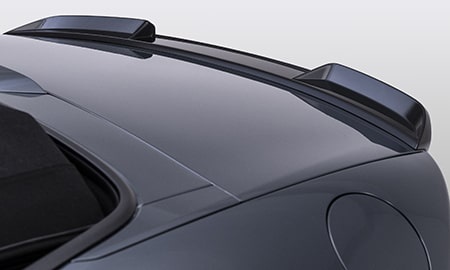

Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.087	2.991	2.035	1.594	1.286	1.000	—	—	4.696

Available colors

black / Jet black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other Ashes / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilverRed / Soul Red Crystal MetallicBlueDark cyanPearl / Snowflake White Pearl MicaGold
