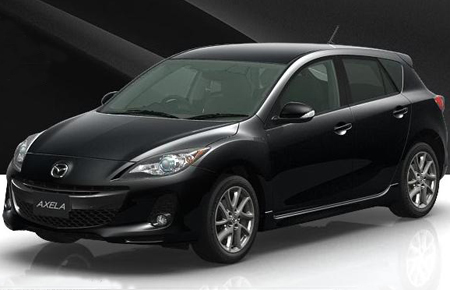

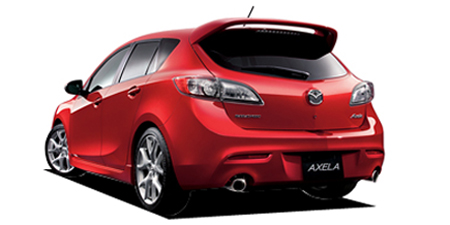

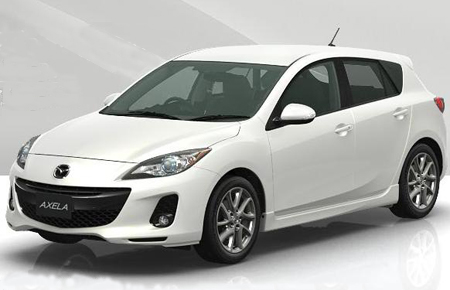

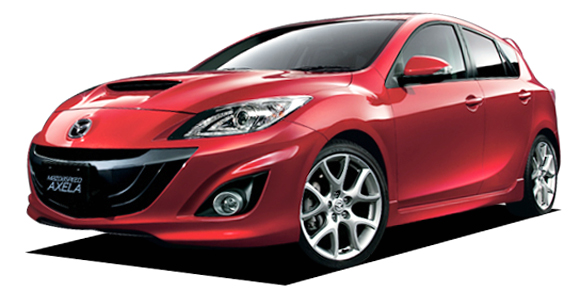

MAZDA SPEED AXELA BASE GRADE

MAZDA SPEED AXELA

BL3FW · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: BL3FW
Dates releasing: 2011.9~
Base price, ¥: DBA-BL3FW
Body size: 4510x1770x1465
Interior (LxWxH): 1980x1475x1200
Wheelbase: 2640
Track f/r: 1535mm/1520mm
Full weight, kg: 1450
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム:横滑り防止機構)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×

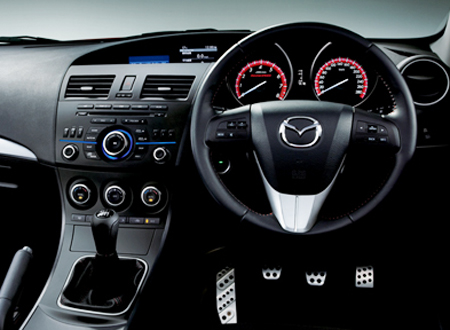

Leather steering wheel: ✓
Leather seats: —

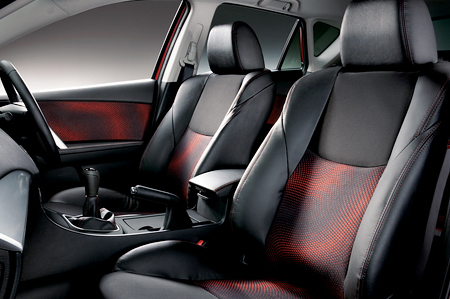

Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

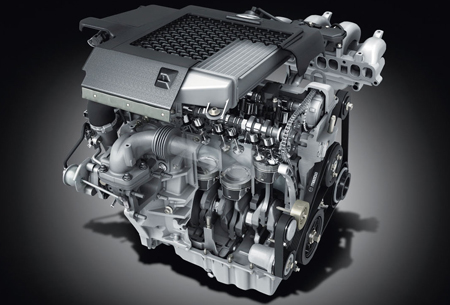

Model: L3-VDT
Type: water cooling inline 4 cylinder DOHC 16-valves turbo
Bore x stroke, mm: 87.5x94.0
Engine size, cc: 2260
Compression ratio: 9.5
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 264ps(194kW)/5500rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/3000rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.1

Steering & suspension

Steering: Power assist equipped rack&pinion

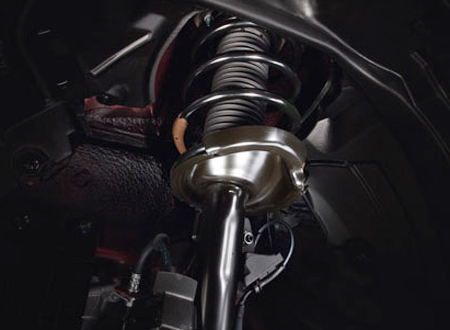

Front suspension: McPherson Strut type

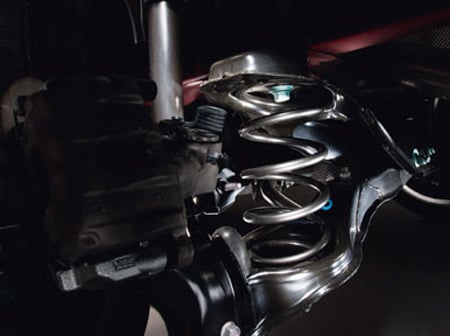

Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/40R18 88Y
Rear wheel: 225/40R18 88Y
Min turn diameter, m: 5.6

Gearbox

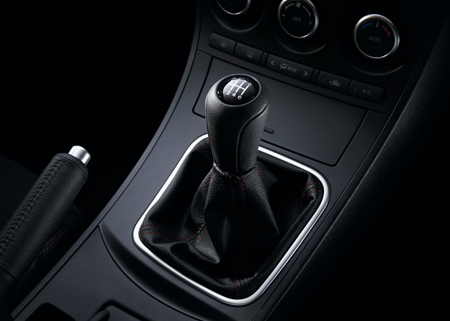

Number of stages: 6MT
Drive: FF
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.214	1.913	1.366	1.025	0.948	0.790	—	—	3.456

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Other PearlGold
