JDM Vehicle Catalog

Vehicle Specs

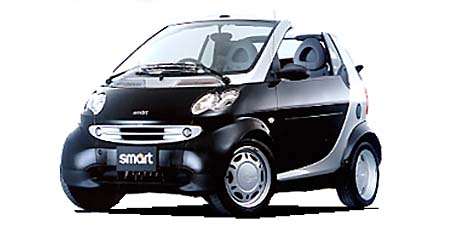

MCC SMART SMART CABRIO BASE GRADE

MCC SMART SMART CABRIO

MC01C · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: MC01C
Dates releasing: 2002.9~
Base price, ¥: GH-MC01C
Body size: 2540x1535x1550
Interior (LxWxH): 965x1240x1110
Wheelbase: 1810
Track f/r: 1275mm/1355mm
Full weight, kg: 760
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: スタビリティコントロール

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 13
Type: inline 3 cylinder SOHCIC-turbo
Bore x stroke, mm: 63.5x63.0
Engine size, cc: 598
Compression ratio: 9.5
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 61ps(45kW)/5250rpm
Max torque, Nm/rpm: 9.0kg m(88N m)/2500~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 33 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ドディオン
Front brake: disk
Rear brake: Drum
Front wheel: 145/65R15
Rear wheel: 175/55R15
Min turn diameter, m: 4.1

Gearbox

Number of stages: 6AT
Drive: RR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
