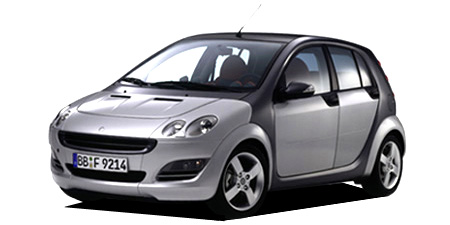

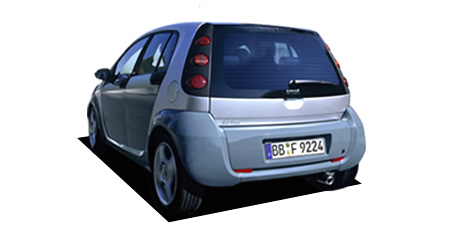

MCC SMART SMART FOR FOUR 1.5

MCC SMART SMART FOR FOUR

454032 · 1.5

Description

Modification: 1.5
Chassis ID: 454032
Dates releasing: 2004.9~
Base price, ¥: GH-454032
Body size: 3790x1685x1460
Interior (LxWxH): 1860x1400x1170
Wheelbase: 2500
Track f/r: 1460mm/1445mm
Full weight, kg: 1060
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1355
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.8
Engine size, cc: 1498
Compression ratio: 10.5
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 14.8kg m(145N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 47 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/50R15
Rear wheel: 195/50R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	13.912	8.665	5.698	4.271	3.457	2.912	—	—	14.633

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
