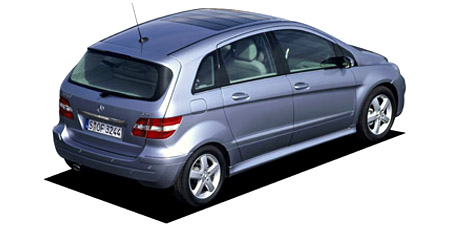

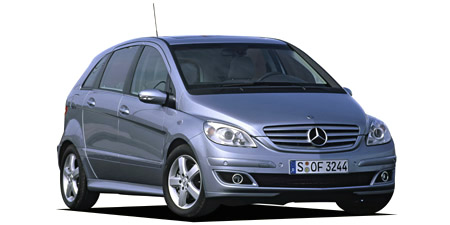

MERCEDES BENZ BCLASS B200

MERCEDES BENZ BCLASS

245233 · B200

Description

Modification: B200
Chassis ID: 245233
Dates releasing: 2006.1~
Base price, ¥: CBA-245233
Body size: 4270x1780x1605
Interior (LxWxH): ----x----x----
Wheelbase: 2780
Track f/r: 1545mm/1540mm
Full weight, kg: 1390
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓

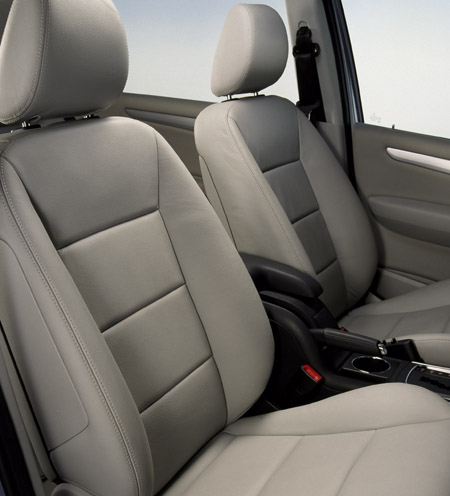

Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard

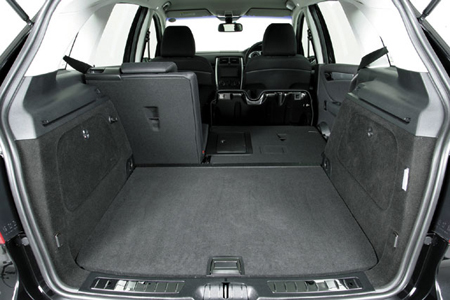

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 266M20
Type: inline 4 cylinder SOHC
Bore x stroke, mm: 83.0x94.0
Engine size, cc: 2034
Compression ratio: 11.0
Fuel injection: 電子制御
Max power, hp/rpm: 136ps(100kW)/5500rpm
Max torque, Nm/rpm: 18.9kg m(185N m)/3500~4000rpm
Supercharger: ×
Fuel tank, liters: 54 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type (セレクティブダンピングシス&#
Rear suspension: スフェリカルパラボリックスプリ&#12531
Front brake: Ventilated disk
Rear brake: disk

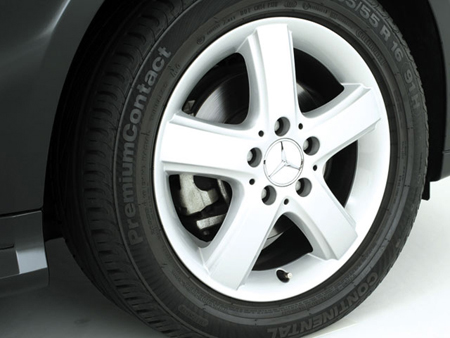

Front wheel: 215/45R17
Rear wheel: 215/45R17
Min turn diameter, m: 5.6

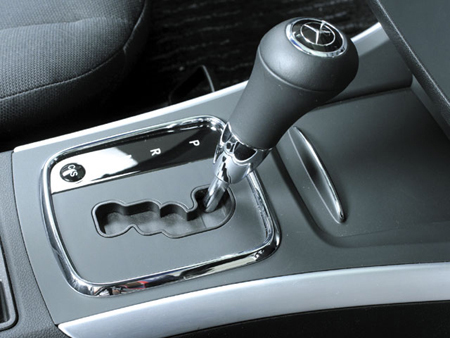

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

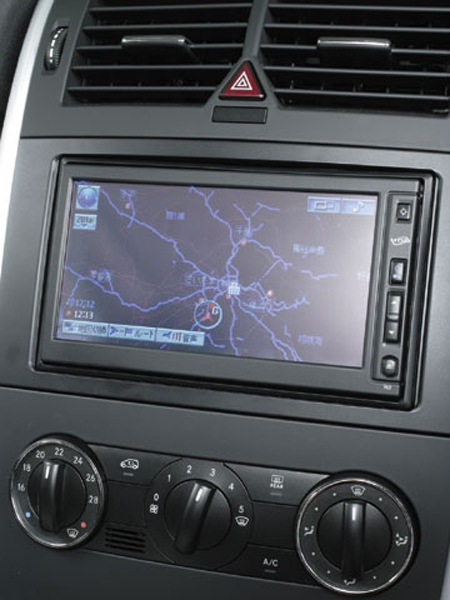

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
0.424~2.719	—	—	—	—	—	—	—	—	4.221

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
