JDM Vehicle Catalog

Vehicle Specs

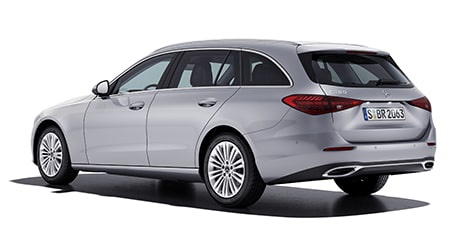

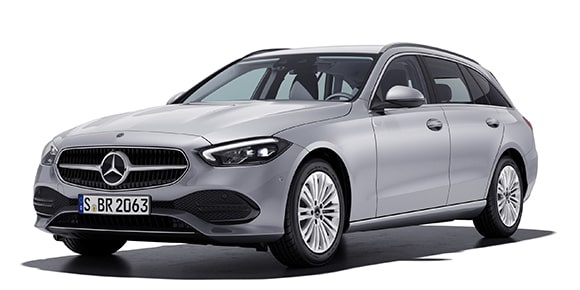

MERCEDES BENZ CCLASS STATIONWAGON C180 STATIONWAGON AVANTGARDE

MERCEDES BENZ CCLASS STATIONWAGON

206241C · C180 STATIONWAGON AVANTGARDE

Description

Modification: C180 STATIONWAGON AVANTGARDE
Chassis ID: 206241C
Dates releasing: 2022.2~
Base price, ¥: 5AA-206241C
Body size: 4755x1820x1455
Interior (LxWxH): ----x----x----
Wheelbase: 2865
Track f/r: 1580mm/1590mm
Full weight, kg: 1690
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: M254
Type: inline 4 cylinder DOHCturbo +
Bore x stroke, mm: 78.0x78.2
Engine size, cc: 1494
Compression ratio: ----
Fuel injection: 電子制御 type 燃料噴射(直噴)
Max power, hp/rpm: 170ps(125kW)/5500~6100rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1800~4000rpm
Supercharger: Turbo
Fuel tank, liters: 66 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: AGILITY CONTROLサスペンション
Rear suspension: AGILITY CONTROLサスペンション
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R17
Rear wheel: 225/50R17
Min turn diameter, m: 5.2

Gearbox

Number of stages: 9AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Polar White (S) / Other whitegreenMaroon (brown)OliveNavy blue / Cabansite Blue (M)PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Hyacinth Thread (M)Blue / Other BlueDark cyanPearlGold
