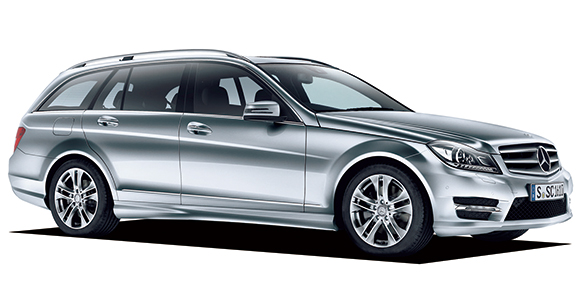

MERCEDES BENZ CCLASS STATIONWAGON C180 STATIONWAGON EDITION C

MERCEDES BENZ CCLASS STATIONWAGON

204249 · C180 STATIONWAGON EDITION C

Description

Modification: C180 STATIONWAGON EDITION C
Chassis ID: 204249
Dates releasing: 2013.12~
Base price, ¥: DBA-204249
Body size: 4610x1770x1460
Interior (LxWxH): ----x----x----
Wheelbase: 2760
Track f/r: 1535mm/1535mm
Full weight, kg: 1560
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 271
Type: inline 4 cylinder DOHCturbo
Bore x stroke, mm: 82.0x85.0
Engine size, cc: 1795
Compression ratio: 9.8
Fuel injection: 電子制御 type 燃料噴射(直噴)
Max power, hp/rpm: 156ps(115kW)/5000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1600~4200rpm
Supercharger: Turbo
Fuel tank, liters: 66 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 3-link
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 5.1

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Polar White (S)greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
