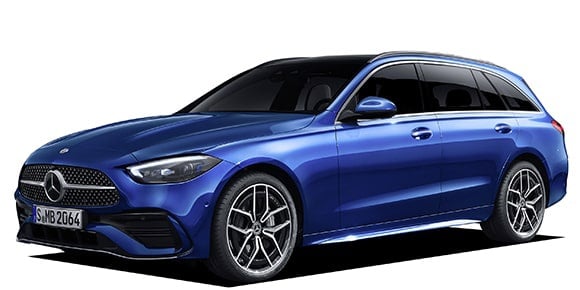

MERCEDES BENZ CCLASS STATIONWAGON C220D STATIONWAGON AVANTGARDE

MERCEDES BENZ CCLASS STATIONWAGON

206204C · C220D STATIONWAGON AVANTGARDE

Description

Modification: C220D STATIONWAGON AVANTGARDE
Chassis ID: 206204C
Dates releasing: 2023.3~
Base price, ¥: 3CA-206204C
Body size: 4755x1820x1455
Interior (LxWxH): ----x----x----
Wheelbase: 2865
Track f/r: 1580mm/1590mm
Full weight, kg: 1790
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 654M
Type: inline 4 cylinder DOHCIC-turbo + (Diesel)
Bore x stroke, mm: 82.0x94.3
Engine size, cc: 1992
Compression ratio: ----
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 200ps(147kW)/3600rpm
Max torque, Nm/rpm: 44.9kg m(440N m)/1800~2800rpm
Supercharger: IC turbo
Fuel tank, liters: 66 l
Fuel: Diesel
Fuel consumption, l/100km: 5.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: AGILITY CONTROLサスペンション
Rear suspension: AGILITY CONTROLサスペンション
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/50R17
Rear wheel: 225/50R17
Min turn diameter, m: 5.2

Gearbox

Number of stages: 9AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Polar White (S) / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
