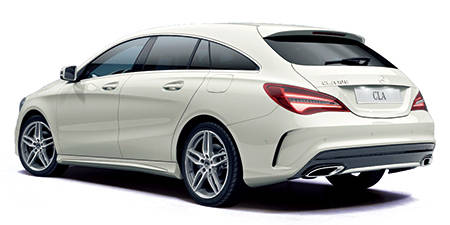

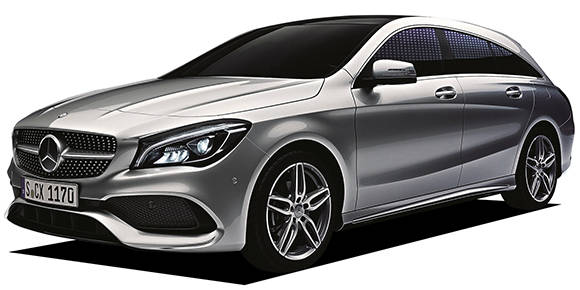

MERCEDES BENZ CLACLASS SHOOTING BRAKE CLA180 SHOOTING BRAKE AMG STYLE

MERCEDES BENZ CLACLASS SHOOTING BRAKE

117942 · CLA180 SHOOTING BRAKE AMG STYLE

Description

Modification: CLA180 SHOOTING BRAKE AMG STYLE
Chassis ID: 117942
Dates releasing: 2018.10~
Base price, ¥: DBA-117942
Body size: 4670x1780x1435
Interior (LxWxH): ----x----x----
Wheelbase: 2700
Track f/r: 1545mm/1545mm
Full weight, kg: 1500
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 270
Type: inline 4 cylinder DOHCturbo
Bore x stroke, mm: 83.0x73.7
Engine size, cc: 1595
Compression ratio: 10.3
Fuel injection: 電子制御 type 燃料噴射(直噴)
Max power, hp/rpm: 122ps(90kW)/5000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/1250~4000rpm
Supercharger: Turbo
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/40R18
Rear wheel: 225/40R18
Min turn diameter, m: 5.1

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Polar White (S)greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Cabansite Blue (M)PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
