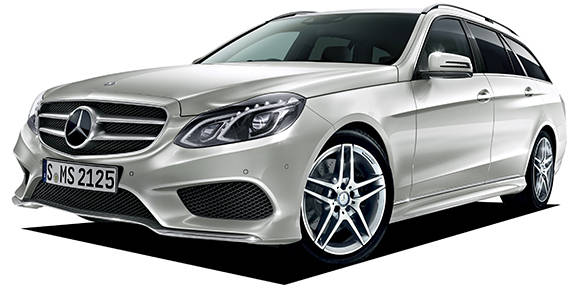

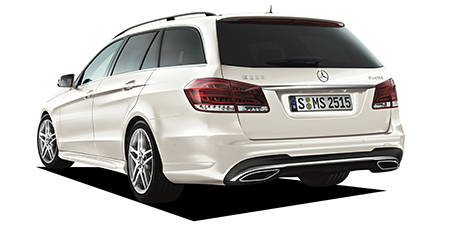

MERCEDES BENZ ECLASS STATIONWAGON E220 BLUE TEC STATIONWAGON AVANTGARDE

MERCEDES BENZ ECLASS STATIONWAGON

212201C · E220 BLUE TEC STATIONWAGON AVANTGARDE

Description

Modification: E220 BLUE TEC STATIONWAGON AVANTGARDE
Chassis ID: 212201C
Dates releasing: 2015.3~
Base price, ¥: LDA-212201C
Body size: 4920x1855x1500
Interior (LxWxH): ----x----x----
Wheelbase: 2875
Track f/r: 1580mm/1585mm
Full weight, kg: 1940
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 651
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: 83.0x99.0
Engine size, cc: 2142
Compression ratio: 16.2
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 177ps(130kW)/3200~3800rpm
Max torque, Nm/rpm: 40.8kg m(400N m)/1400~2800rpm
Supercharger: Turbo
Fuel tank, liters: 80 l
Fuel: Diesel
Fuel consumption, l/100km: 5.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 3-link
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 245/40R18
Rear wheel: 265/35R18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / BLACK (S) / Obsidian Black (M)white / Polar White (S) / Diamond White (M)greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Iridium Silver (M) or Diamond Silver (M)Red / Hyacinth Thread (M)Blue / Other BlueDark cyanPearlGold
