JDM Vehicle Catalog

Vehicle Specs

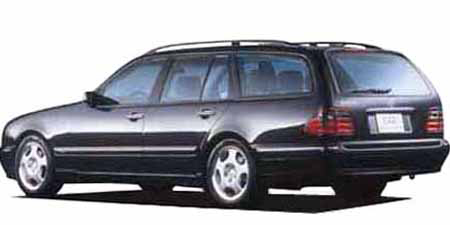

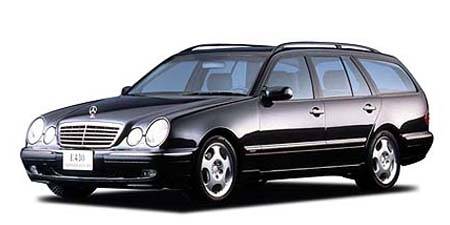

MERCEDES BENZ ECLASS STATIONWAGON E430 STATIONWAGON AVANTGARDE

MERCEDES BENZ ECLASS STATIONWAGON

210270 · E430 STATIONWAGON AVANTGARDE

Description

Modification: E430 STATIONWAGON AVANTGARDE
Chassis ID: 210270
Dates releasing: 2001.1~
Base price, ¥: GF-210270
Body size: 4840x1800x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2835
Track f/r: 1535mm/1530mm
Full weight, kg: 1720
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: エレクトロニックスタビリティ PRO グラム

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1134
Type: water cooling V-type 8 cylinder SOHC 24-valves
Bore x stroke, mm: 89.9x84.0
Engine size, cc: 4265
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 279ps(205kW)/5750rpm
Max torque, Nm/rpm: 40.8kg m(400.1N m)/3000~4400rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 12.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/45R17
Rear wheel: 235/45R17
Min turn diameter, m: 5.2

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: CD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
