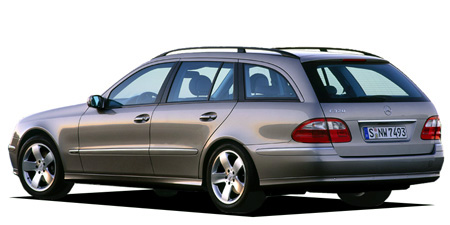

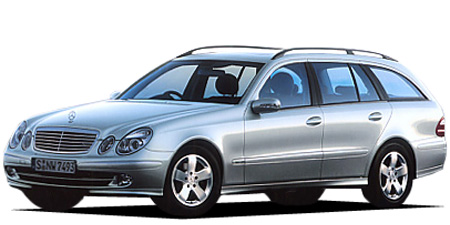

MERCEDES BENZ ECLASS STATIONWAGON E500 STATIONWAGON AVANTGARDE

MERCEDES BENZ ECLASS STATIONWAGON

211270 · E500 STATIONWAGON AVANTGARDE

Description

Modification: E500 STATIONWAGON AVANTGARDE
Chassis ID: 211270
Dates releasing: 2004.4~
Base price, ¥: GH-211270
Body size: 4850x1820x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2855
Track f/r: 1565mm/1560mm
Full weight, kg: 1880
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: SBC(センソトロニックブレーキコントロール) ESP(エレクトロニックスタビリ&#

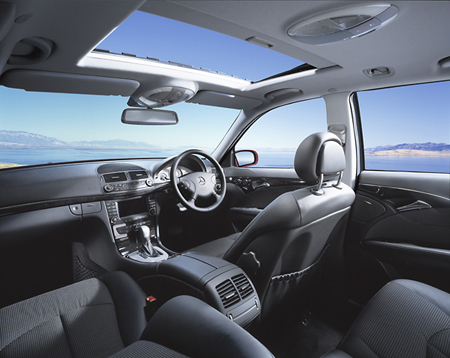

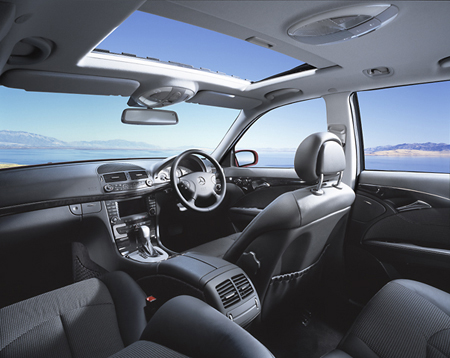

Comfort

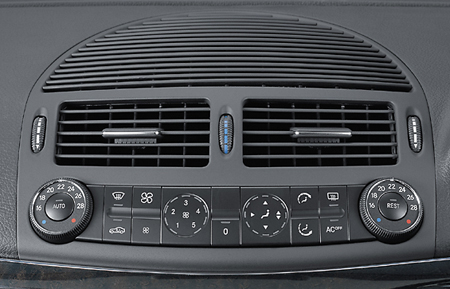

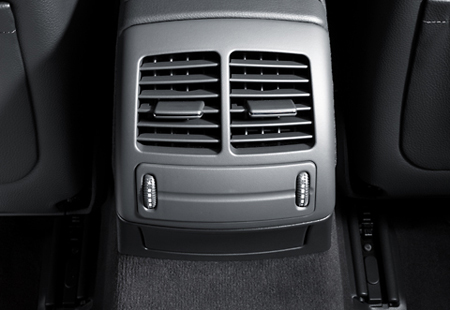

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 17 inches standard

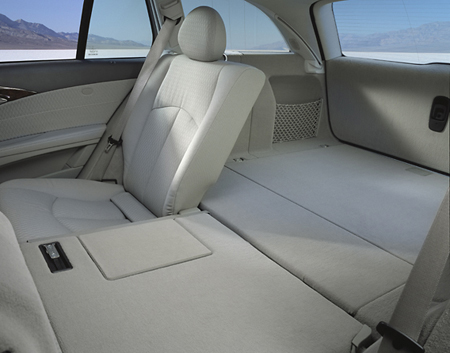

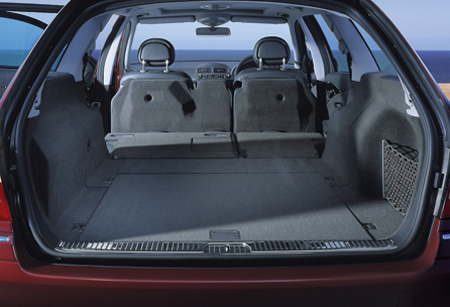

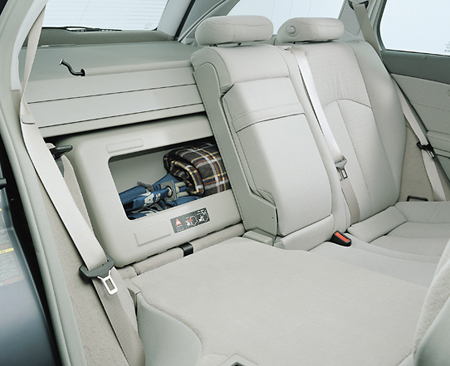

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 113
Type: V-type 8 cylinder SOHC
Bore x stroke, mm: 97.0x84.0
Engine size, cc: 4965
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 306ps(225kW)/5600rpm
Max torque, Nm/rpm: 46.9kg m(460N m)/2700~4250rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 14.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4-link
Rear suspension: Multi-link (エアサスペンション)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/45 R17
Rear wheel: 245/45 R17
Min turn diameter, m: 5.3

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

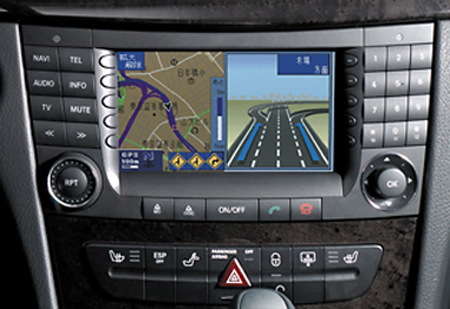

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearlGold
