MERCEDES BENZ ECLASS STATIONWAGON E55 AMG STATIONWAGON

MERCEDES BENZ ECLASS STATIONWAGON

211276 · E55 AMG STATIONWAGON

Description

Modification: E55 AMG STATIONWAGON
Chassis ID: 211276
Dates releasing: 2004.4~
Base price, ¥: GH-211276
Body size: 4880x1820x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2855
Track f/r: 1585mm/1560mm
Full weight, kg: 2000
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: SBC(センソトロニックブレーキコントロール) ESP(エレクトロニックスタビリ&#

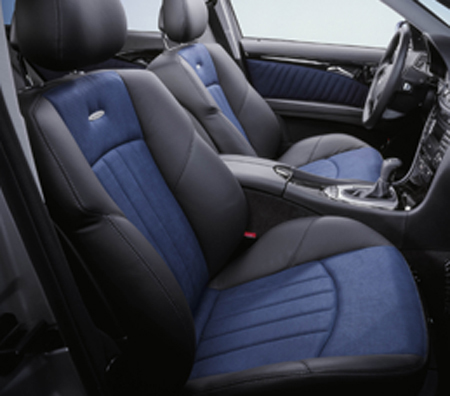

Comfort

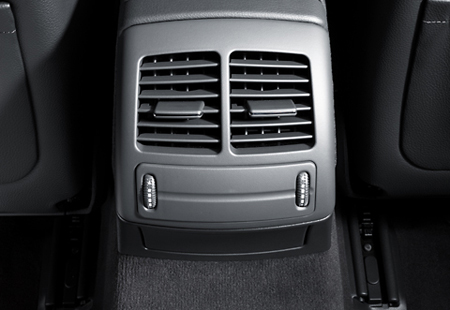

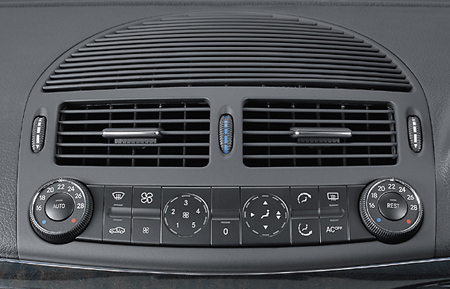

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

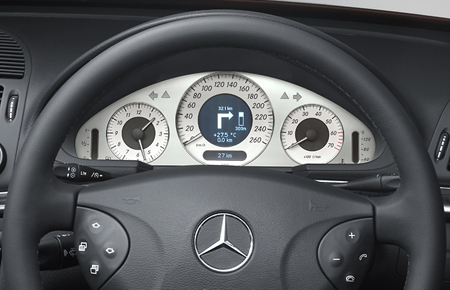

Leather steering wheel: ✓
Leather seats: —

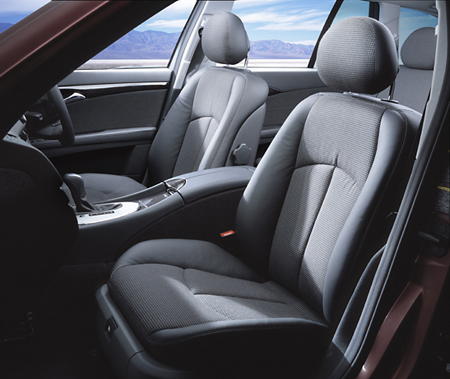

Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 18 inches standard

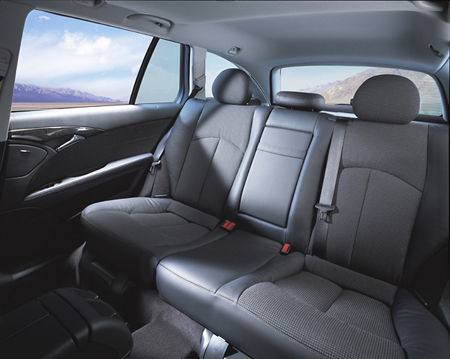

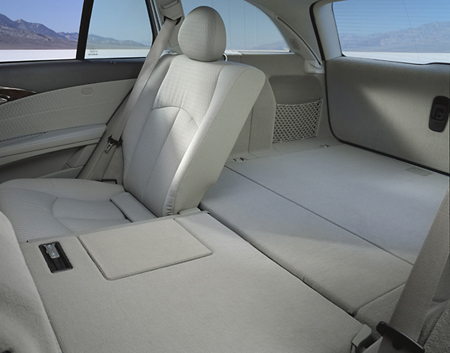

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 113M55
Type: V-type 8 cylinder SOHCSチャージャ&
Bore x stroke, mm: 97.0x92.0
Engine size, cc: 5438
Compression ratio: 9.0
Fuel injection: 電子制御
Max power, hp/rpm: 476ps(350kW)/6100rpm
Max torque, Nm/rpm: 71.4kg m(700N m)/2650~4000rpm
Supercharger: S charger
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 16.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4-link
Rear suspension: Multi-link (エアサスペンション)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/40 R18
Rear wheel: 265/35 R18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

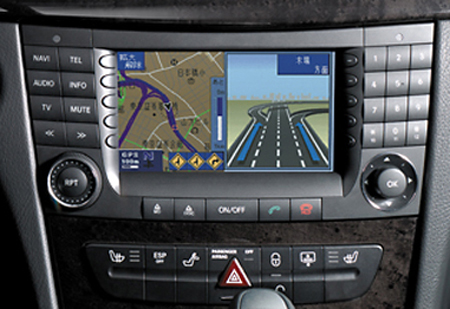

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearlGold
