JDM Vehicle Catalog

Vehicle Specs

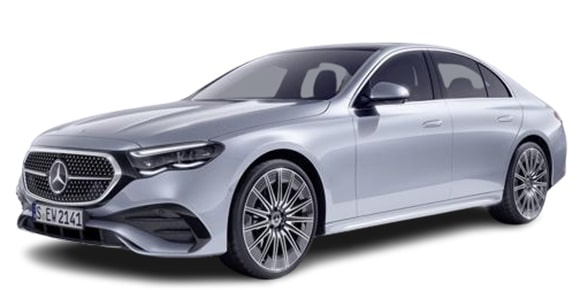

MERCEDES BENZ ECLASS E220D

MERCEDES BENZ ECLASS

214004C · E220D

Description

Modification: E220D
Chassis ID: 214004C
Dates releasing: 2025.10~
Base price, ¥: 3CA-214004C
Body size: 4960x1880x1470
Interior (LxWxH): ----x----x----
Wheelbase: 2960
Track f/r: 1630mm/1645mm
Full weight, kg: 1870
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 654M
Type: inline 4 cylinder DOHCturbo + (Diesel)
Bore x stroke, mm: 82.0x94.3
Engine size, cc: 1992
Compression ratio: ----
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 197ps(145kW)/3600rpm
Max torque, Nm/rpm: 44.9kg m(440N m)/1800~2800rpm
Supercharger: Turbo
Fuel tank, liters: 66 l
Fuel: Diesel
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: AGILITY CONTROLサスペンション
Rear suspension: AGILITY CONTROLサスペンション
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/55R18
Rear wheel: 225/55R18
Min turn diameter, m: 5.4

Gearbox

Number of stages: 9AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Polar White (S) / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
