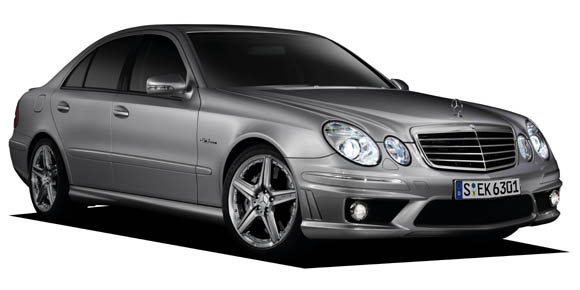

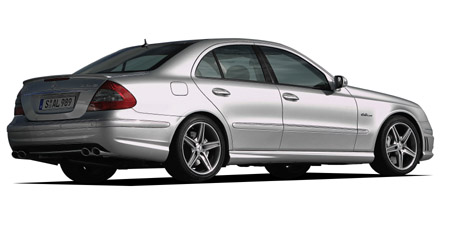

MERCEDES BENZ ECLASS E63 AMG

MERCEDES BENZ ECLASS

211077 · E63 AMG

Description

Modification: E63 AMG
Chassis ID: 211077
Dates releasing: 2007.12~
Base price, ¥: CBA-211077
Body size: 4880x1820x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2855
Track f/r: 1565mm/1560mm
Full weight, kg: 1920
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

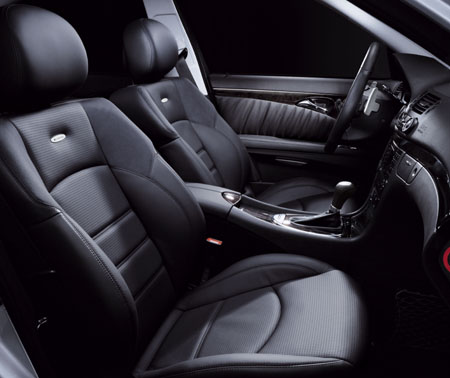

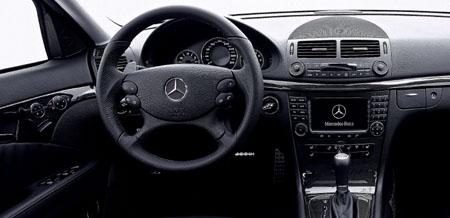

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

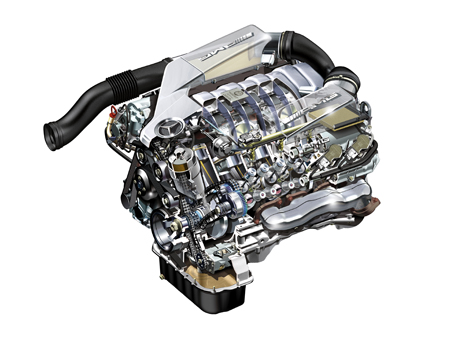

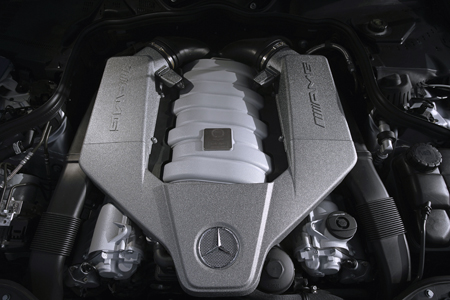

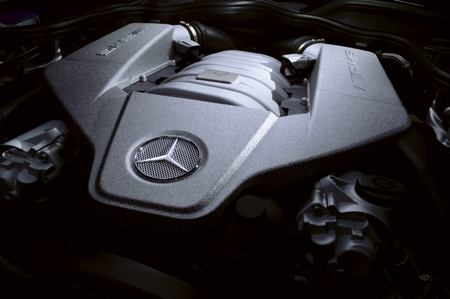

Engine

Model: 156
Type: V-type 8 cylinder DOHC
Bore x stroke, mm: 102.2x94.6
Engine size, cc: 6208
Compression ratio: 11.3
Fuel injection: 電子制御
Max power, hp/rpm: 514ps(378kW)/6800rpm
Max torque, Nm/rpm: 64.2kg m(630N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 17.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4-link
Rear suspension: Multi-link

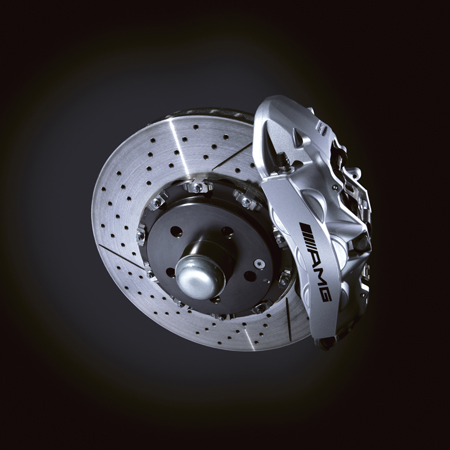

Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/40R18
Rear wheel: 265/35R18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×

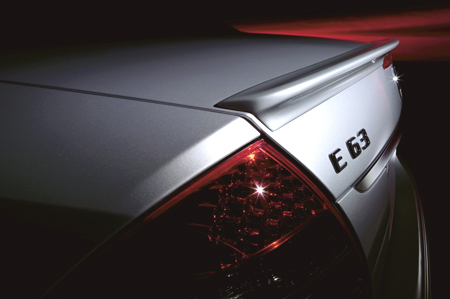

Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
