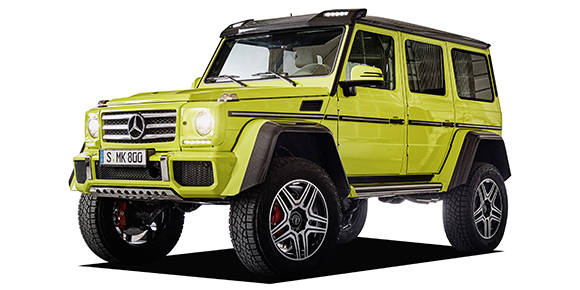

MERCEDES BENZ GCLASS G550 4x4 SQUARED

MERCEDES BENZ GCLASS

463234 · G550 4x4 SQUARED

Description

Modification: G550 4x4 SQUARED
Chassis ID: 463234
Dates releasing: 2016.4~
Base price, ¥: ABA-463234
Body size: 4520x2100x2240
Interior (LxWxH): ----x----x----
Wheelbase: 2850
Track f/r: 1760mm/1780mm
Full weight, kg: 2950
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: 4ESP(4エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 22 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 176
Type: V-type 8 cylinder DOHCツインturbo
Bore x stroke, mm: 83.0x92.0
Engine size, cc: 3982
Compression ratio: 10.5
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 421ps(310kW)/5250~5500rpm
Max torque, Nm/rpm: 62.2kg m(610N m)/2000~4750rpm
Supercharger: Twin-turbo
Fuel tank, liters: 96 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Coil spring type リジッ DOOR クスル
Rear suspension: Coil spring type リジッ DOOR クスル
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 325/55R22
Rear wheel: 325/55R22
Min turn diameter, m: 6.3

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
