JDM Vehicle Catalog

Vehicle Specs

MERCEDES BENZ RCLASS R500 4MATIC

MERCEDES BENZ RCLASS

251075 · R500 4MATIC

Description

Modification: R500 4MATIC
Chassis ID: 251075
Dates releasing: 2006.3~
Base price, ¥: CBA-251075
Body size: 4930x1920x1660
Interior (LxWxH): ----x----x----
Wheelbase: 2980
Track f/r: 1645mm/1635mm
Full weight, kg: 2230
Body type: SUV
Doors / seats: 5 door / 6

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: 4ESP(4エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

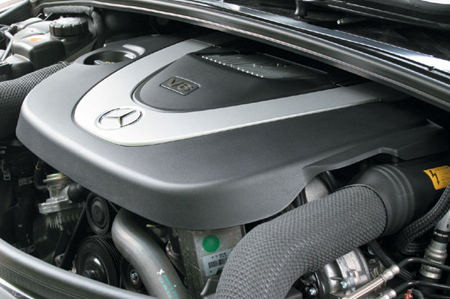

Engine

Model: 113
Type: V-type 8 cylinder SOHC
Bore x stroke, mm: 97.0x84.0
Engine size, cc: 4965
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 306ps(225kW)/5600rpm
Max torque, Nm/rpm: 46.9kg m(460N m)/2700~4250rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 16.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: 4-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 255/55R18
Rear wheel: 255/55R18
Min turn diameter, m: 5.9

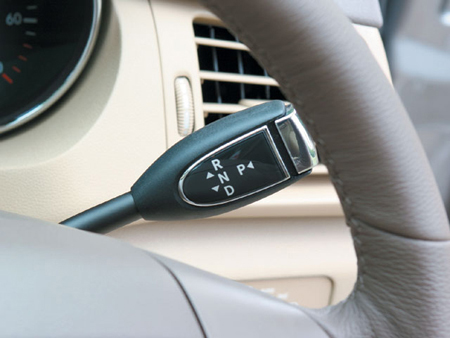

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
