Vehicle Specs

MERCEDES BENZ SCLASS S300H EXCLUSIVE

MERCEDES BENZ SCLASS

222004 · S300H EXCLUSIVE

Description

Modification: S300H EXCLUSIVE
Chassis ID: 222004
Dates releasing: 2016.7~
Base price, ¥: LCA-222004
Body size: 5150x1915x1495
Interior (LxWxH): ----x----x----
Wheelbase: 3035
Track f/r: 1630mm/1645mm
Full weight, kg: 2170
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: 特殊形状
Alloy wheels: 19 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

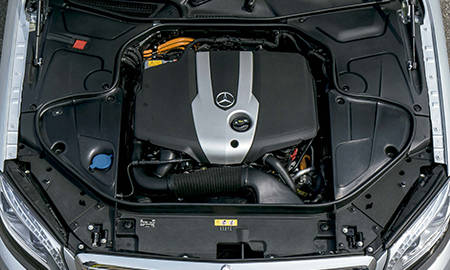

Engine

Model: 651
Type: inline 4 cylinder DOHCturbo + (Diesel)
Bore x stroke, mm: 83.0x99.0
Engine size, cc: 2142
Compression ratio: 16.2
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 204ps(150kW)/3800rpm
Max torque, Nm/rpm: 51.0kg m(500N m)/1600~1800rpm
Supercharger: Turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 4.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: AIRマティックサスペンション
Rear suspension: AIRマティックサスペンション
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/45R19
Rear wheel: 275/40R19
Min turn diameter, m: 5.5

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Diamond White (M)greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Diamond silver (M)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
