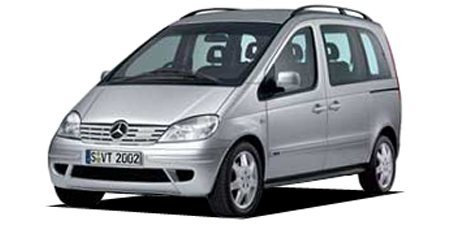

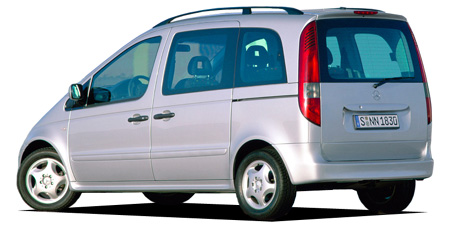

MERCEDES BENZ VANEO 1.9 AMBIENTE

MERCEDES BENZ VANEO

414700 · 1.9 AMBIENTE

Description

Modification: 1.9 AMBIENTE
Chassis ID: 414700
Dates releasing: 2004.4~
Base price, ¥: GH-414700
Body size: 4205x1740x1845
Interior (LxWxH): ----x----x----
Wheelbase: 2900
Track f/r: 1525mm/1475mm
Full weight, kg: 1430
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1669
Type: inline 4 cylinder SOHC
Bore x stroke, mm: 84.0x85.6
Engine size, cc: 1897
Compression ratio: 10.8
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 125ps(92kW)/5500rpm
Max torque, Nm/rpm: 18.4kg m(180N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 54 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: トレーリングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/50R 16
Rear wheel: 195/50R 16
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.625	2.090	1.314	0.902	0.721	—	—	—	3.673

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other RedBlue / Other BlueDark cyanPearlGold
