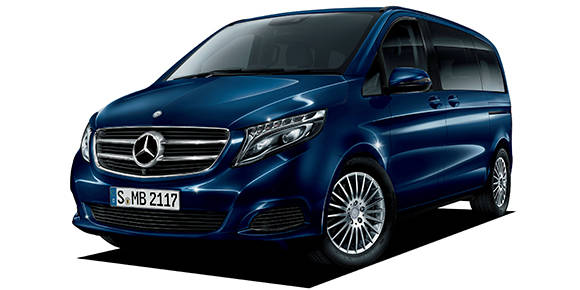

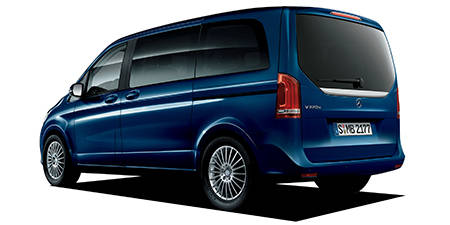

MERCEDES BENZ VCLASS V220D

MERCEDES BENZ VCLASS

447811 · V220D

Description

Modification: V220D
Chassis ID: 447811
Dates releasing: 2015.10~
Base price, ¥: LDA-447811
Body size: 4905x1930x1880
Interior (LxWxH): ----x----x----
Wheelbase: 3200
Track f/r: 1665mm/1645mm
Full weight, kg: 2370
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

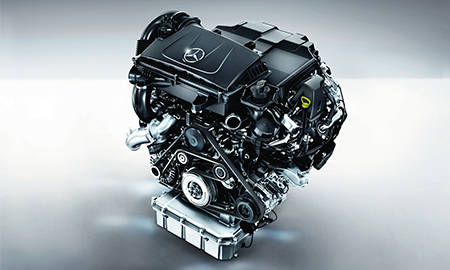

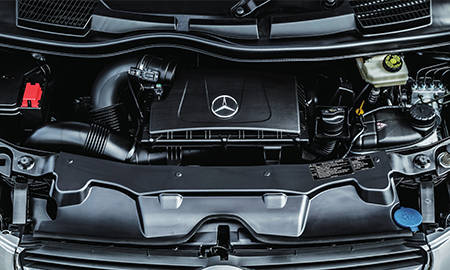

Engine

Model: 651
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: 83.0x99.0
Engine size, cc: 2142
Compression ratio: 16.2
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 163ps(120kW)/3800rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/1400~2400rpm
Supercharger: Turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 6.5

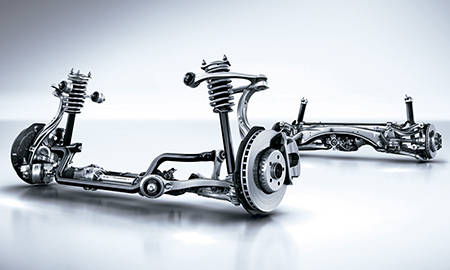

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: セミトレーリングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17
Rear wheel: 225/55R17
Min turn diameter, m: 5.6

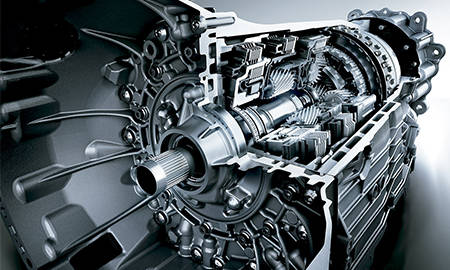

Gearbox

Number of stages: 7AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Other whitegreenMaroon (brown)OliveNavy blue / Cabansite Blue (M)PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other RedBlueDark cyanPearlGold
