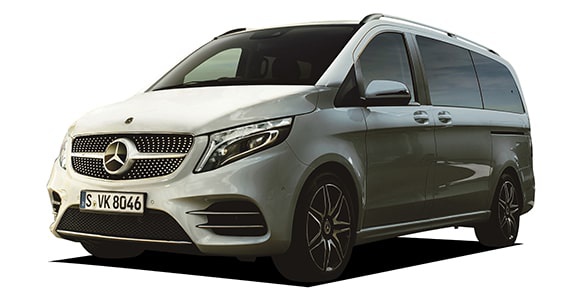

MERCEDES BENZ VCLASS V220D AVANTGARDE EXTRA LONG

MERCEDES BENZ VCLASS

447815N · V220D AVANTGARDE EXTRA LONG

Description

Modification: V220D AVANTGARDE EXTRA LONG
Chassis ID: 447815N
Dates releasing: 2023.2~
Base price, ¥: 3DA-447815N
Body size: 5380x1930x1930
Interior (LxWxH): ----x----x----
Wheelbase: 3430
Track f/r: 1665mm/1645mm
Full weight, kg: 2460
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

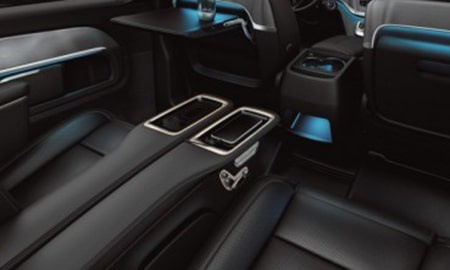

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

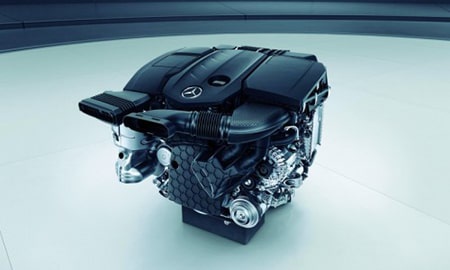

Engine

Model: 654
Type: inline 4 cylinder DOHCIC-turbo (Diesel)
Bore x stroke, mm: 82.0x92.3
Engine size, cc: 1949
Compression ratio: ----
Fuel injection: 電子制御燃料直接噴射(コモンレー&#12523
Max power, hp/rpm: 163ps(120kW)/3800~4400rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/1600~2400rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 6.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: AGILITY CONTROLサスペンション
Rear suspension: AGILITY CONTROLサスペンション
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 245/45R18
Rear wheel: 245/45R18
Min turn diameter, m: 6.0

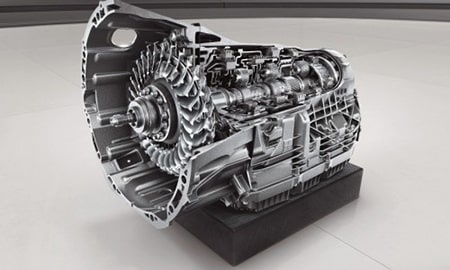

Gearbox

Number of stages: 9AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Obsidian Black (M)white / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other Red / Hyacinth Thread (M)BlueDark cyan / Other Dark cyanPearlGold
