MERCEDES BENZ VIANO 3.2 AMBIENTE

MERCEDES BENZ VIANO

639811 · 3.2 AMBIENTE

Description

Modification: 3.2 AMBIENTE
Chassis ID: 639811
Dates releasing: 2004.7~
Base price, ¥: GH-639811

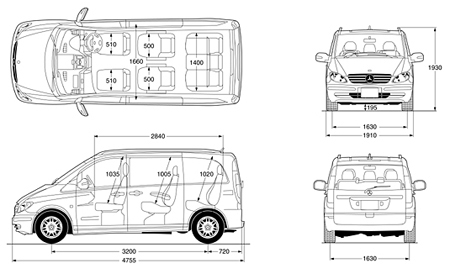

Body size: 4755x1910x1930
Interior (LxWxH): ----x----x----
Wheelbase: 3200
Track f/r: 1630mm/1630mm
Full weight, kg: 2100
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

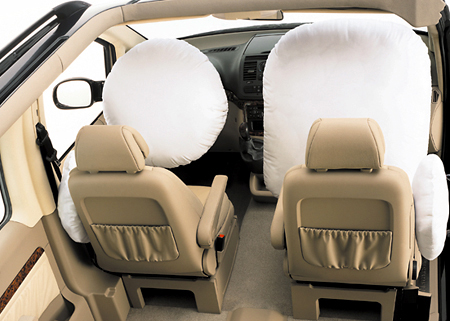

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard

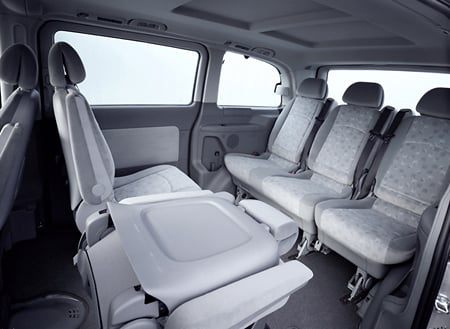

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 112
Type: V-type 6 cylinder SOHC
Bore x stroke, mm: 89.9x84.0
Engine size, cc: 3199
Compression ratio: 10.0
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 218ps(160kW)/5600rpm
Max torque, Nm/rpm: 31.1kg m(305N m)/2800~4750rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 12.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: セミトレーリングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/60R 16C
Rear wheel: 225/60R 16C
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.595	2.186	1.405	1.000	0.831	—	—	—	3.167

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other RedBlue / Other BlueDark cyanPearlGold
