JDM Vehicle Catalog

Vehicle Specs

MITSUBISHI BRAVO ルート66

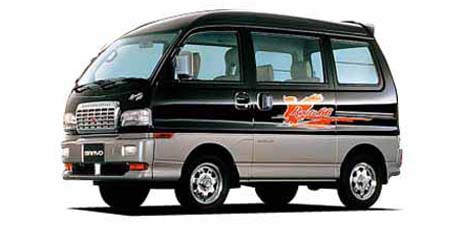

MITSUBISHI BRAVO

U43V · ルート66

Description

Modification: ルート66
Chassis ID: U43V
Dates releasing: 1997.8~
Base price, ¥: V-U43V
Body size: 3295x1395x1920
Interior (LxWxH): ----x----x----
Wheelbase: 1920
Track f/r: 1190mm/1210mm
Full weight, kg: 840
Body type: Kei-cab van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4A30
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 60.0x58.3
Engine size, cc: 659
Compression ratio: 10.0
Fuel injection: サイドドラフト 1バレル(可変ベンチ&#125
Max power, hp/rpm: 44ps(32kW)/6000rpm
Max torque, Nm/rpm: 5.7kg m(56N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut Coil spring /スタビライザー付
Rear suspension: 3リンク Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 155SR12
Rear wheel: 155SR12
Min turn diameter, m: 3.9

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.882	2.363	1.525	1.000	0.852	—	—	—	4.270

Available colors

black / Other blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
