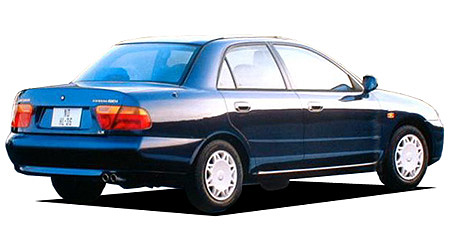

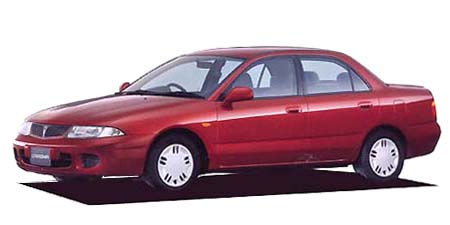

MITSUBISHI CARISMA L

MITSUBISHI CARISMA

DA2A · L

Description

Modification: L
Chassis ID: DA2A
Dates releasing: 1996.10~
Base price, ¥: E-DA2A
Body size: 4450x1695x1405
Interior (LxWxH): 1885x1435x1170
Wheelbase: 2550
Track f/r: 1455mm/1475mm
Full weight, kg: 1140
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4G93
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 81.0x89.0
Engine size, cc: 1834
Compression ratio: 9.5
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 125ps(92kW)/6000rpm
Max torque, Nm/rpm: 16.5kg m(161.8N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R14 86H
Rear wheel: 185/65R14 86H
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.529	1.000	0.712	—	—	—	—	2.480

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
