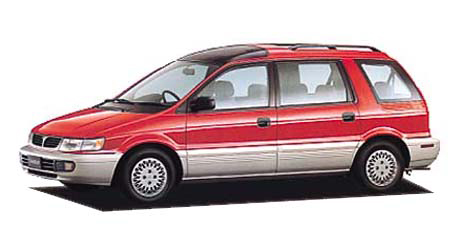

MITSUBISHI CHARIOT MX

MITSUBISHI CHARIOT

N43W · MX

Description

Modification: MX
Chassis ID: N43W
Dates releasing: 1996.5~
Base price, ¥: E-N43W
Body size: 4495x1695x1595
Interior (LxWxH): 2345x1435x1250
Wheelbase: 2720
Track f/r: 1455mm/1460mm
Full weight, kg: 1400
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4G63
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 85.0x88.0
Engine size, cc: 1997
Compression ratio: 9.5
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 135ps(99kW)/6000rpm
Max torque, Nm/rpm: 18.0kg m(176.5N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut / Coil spring
Rear suspension: セミトレーリングアーム/ Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R14 88S
Rear wheel: 185/70R14 88S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.083	1.684	1.115	0.833	0.690	—	—	—	3.166

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
