JDM Vehicle Catalog

Vehicle Specs

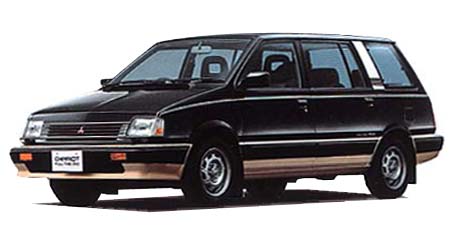

MITSUBISHI CHARIOT MX

MITSUBISHI CHARIOT

D05W · MX

Description

Modification: MX
Chassis ID: D05W
Dates releasing: 1989.8~
Base price, ¥: E-D05W
Body size: 4490x1645x1525
Interior (LxWxH): 2435x1360x1280
Wheelbase: 2625
Track f/r: 1410mm/1375mm
Full weight, kg: 1150
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G37B
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 80.6x86.0
Engine size, cc: 1755
Compression ratio: 9.0
Fuel injection: 電子制御キャブレタ
Max power, hp/rpm: 85ps(63kW)/5500rpm
Max torque, Nm/rpm: 14.1kg m(138.3N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Independent suspension
Rear suspension: トレーリングアーム type Independent suspension
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R13 85S
Rear wheel: 185/70R13 85S
Min turn diameter, m: 5.3

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.454	1.947	1.285	0.939	0.756	—	—	—	3.083

Available colors

blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
