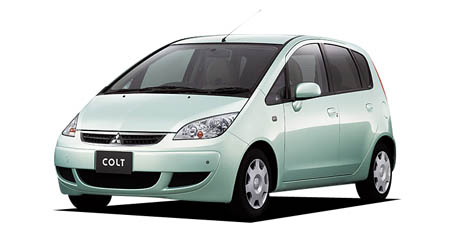

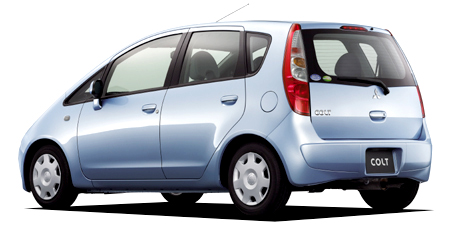

MITSUBISHI COLT CASUAL

MITSUBISHI COLT

Z24A · CASUAL

Description

Modification: CASUAL
Chassis ID: Z24A
Dates releasing: 2004.10~
Base price, ¥: CBA-Z24A
Body size: 3885x1680x1550
Interior (LxWxH): 1800x1400x1240
Wheelbase: 2500
Track f/r: 1460mm/1430mm
Full weight, kg: 1090
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: 4A91 MIVEC
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 75.0x84.8
Engine size, cc: 1499
Compression ratio: 10.0
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 102ps(75kW)/6000rpm
Max torque, Nm/rpm: 14.1kg m(138N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring (stabilizer attaching)
Rear suspension: トレーリング Axle Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14
Rear wheel: 175/65R14
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.319~0.445	—	—	—	—	—	—	—	—	2.588

Available colors

black / black micawhite / White solidgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
