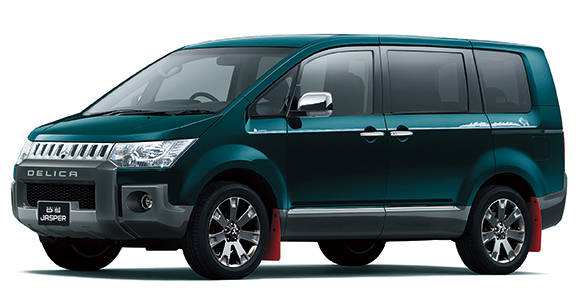

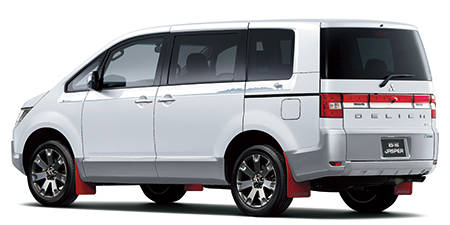

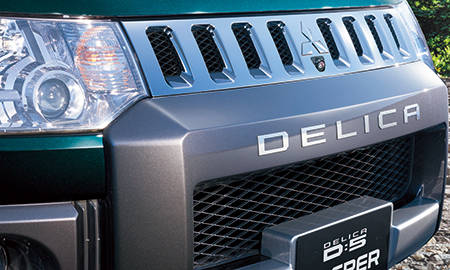

MITSUBISHI DELICA D5 JASPER

MITSUBISHI DELICA D5

CV1W · JASPER

Description

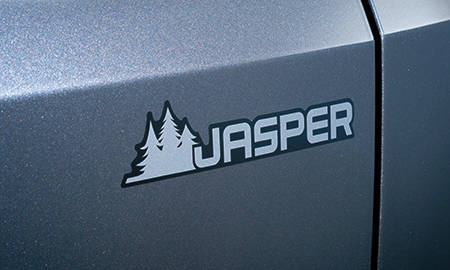

Modification: JASPER
Chassis ID: CV1W
Dates releasing: 2018.5~
Base price, ¥: LDA-CV1W
Body size: 4790x1795x1870
Interior (LxWxH): 2915x1505x1310
Wheelbase: 2850
Track f/r: 1540mm/1540mm
Full weight, kg: 1890
Body type: MV 1Box

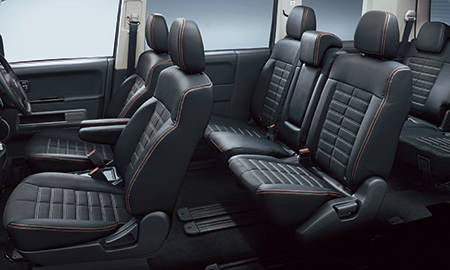

Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ACTIVE スタビリティコントロール(ASC)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

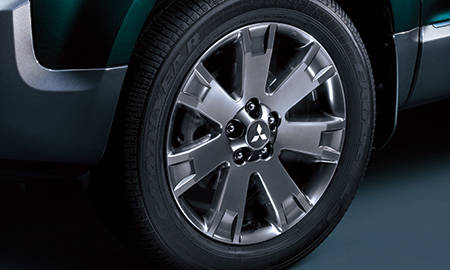

Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4N14
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 86.0x97.6
Engine size, cc: 2267
Compression ratio: 14.9
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 148ps(109kW)/3500rpm
Max torque, Nm/rpm: 36.7kg m(360N m)/1500~2750rpm
Supercharger: IC turbo
Fuel tank, liters: 64 l
Fuel: Diesel
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R18
Rear wheel: 225/55R18
Min turn diameter, m: 5.6

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

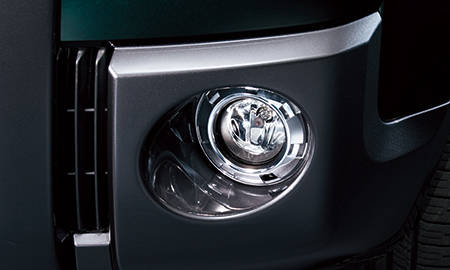

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

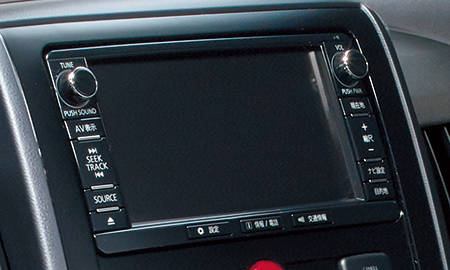

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.199	2.405	1.583	1.161	0.855	0.685	—	—	3.457

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
