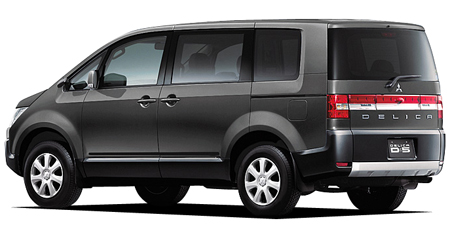

MITSUBISHI DELICA D5 M

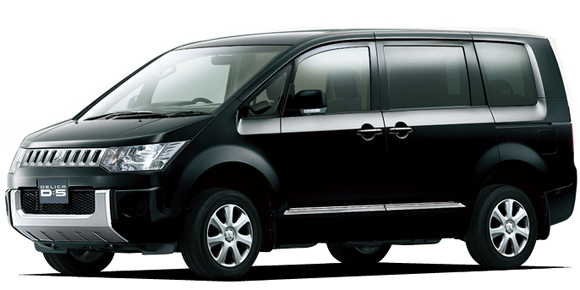

MITSUBISHI DELICA D5

CV5W · M

Description

Modification: M
Chassis ID: CV5W
Dates releasing: 2012.7~
Base price, ¥: DBA-CV5W
Body size: 4730x1795x1870
Interior (LxWxH): 2915x1505x1310
Wheelbase: 2850
Track f/r: 1540mm/1540mm
Full weight, kg: 1770
Body type: MV 1Box

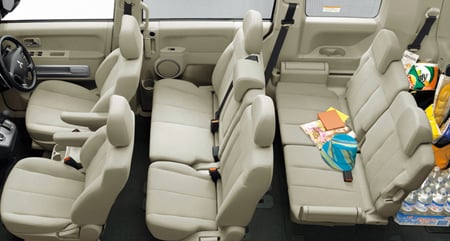

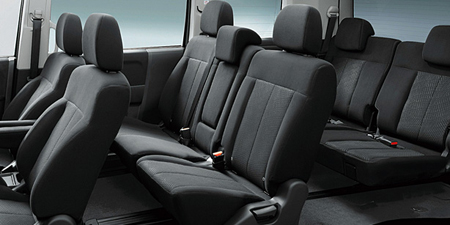

Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ACTIVE スタビリティコントロール(ASC)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

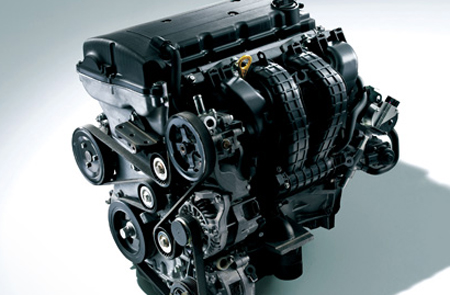

Model: 4B12 MIVEC
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 88.0x97.0
Engine size, cc: 2359
Compression ratio: 10.5
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 170ps(125kW)/6000rpm
Max torque, Nm/rpm: 23.0kg m(226N m)/4100rpm
Supercharger: ×
Fuel tank, liters: 66 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/70R16
Rear wheel: 215/70R16
Min turn diameter, m: 5.6

Gearbox

Number of stages: CVT

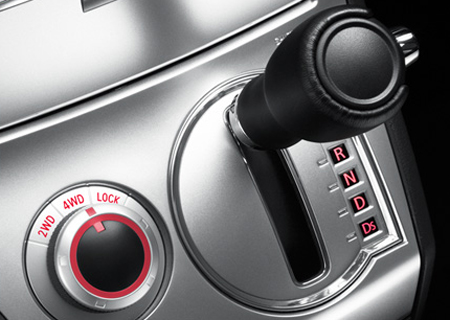

Drive: Full-time 4WD
LSD: ----

Exterior equipment

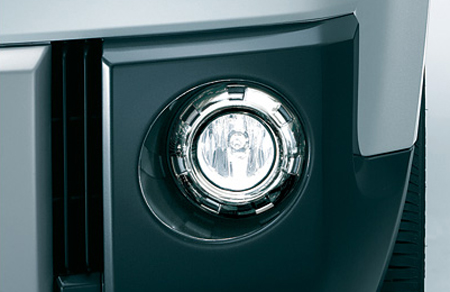

Front fog lights: ×
Rear fog lights: ×

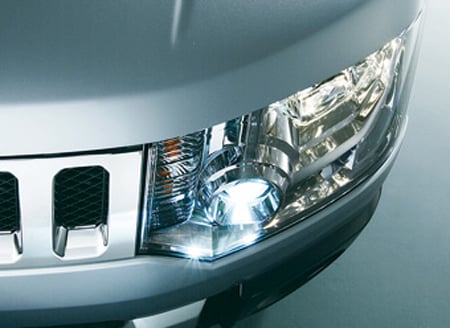

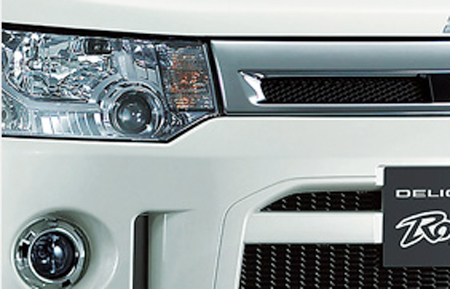

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

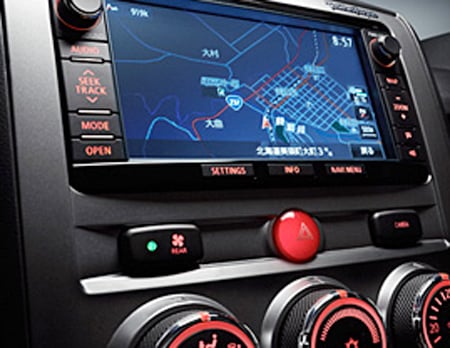

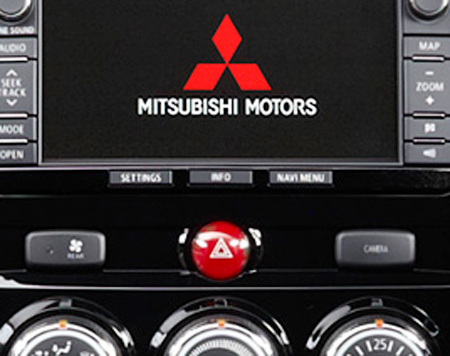

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.349~0.394	—	—	—	—	—	—	—	—	1.750

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyan / Other Dark cyanPearl / Other PearlGold
