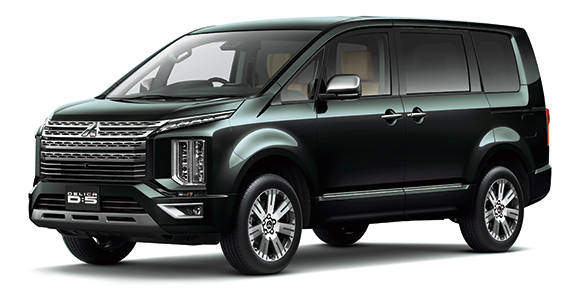

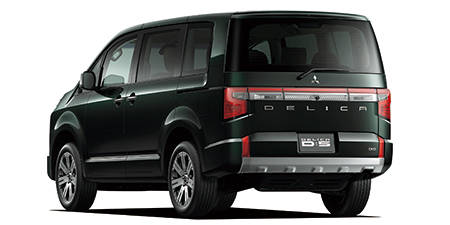

MITSUBISHI DELICA D5 P

MITSUBISHI DELICA D5

CV1W · P

Description

Modification: P
Chassis ID: CV1W
Dates releasing: 2019.2~
Base price, ¥: 3DA-CV1W
Body size: 4800x1795x1875
Interior (LxWxH): 2980x1505x1310
Wheelbase: 2850
Track f/r: 1540mm/1535mm
Full weight, kg: 1950
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ACTIVE スタビリティコントロール(ASC)

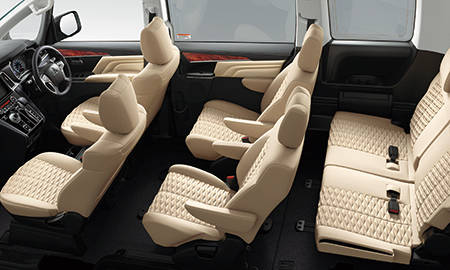

Comfort

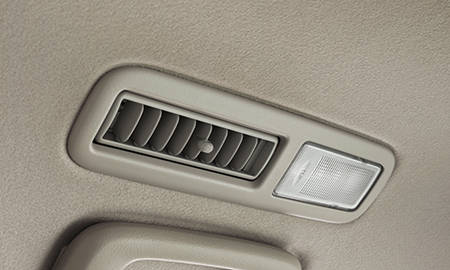

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓

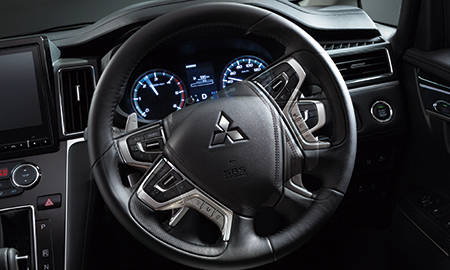

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

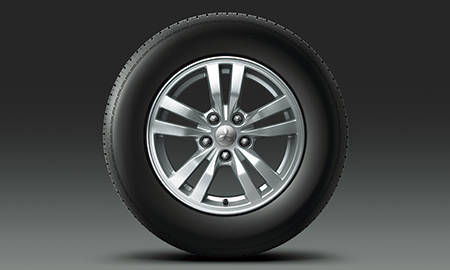

Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4N14
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 86.0x97.6
Engine size, cc: 2267
Compression ratio: 14.4
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 145ps(107kW)/3500rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 64 l
Fuel: Diesel
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R18
Rear wheel: 225/55R18
Min turn diameter, m: 5.6

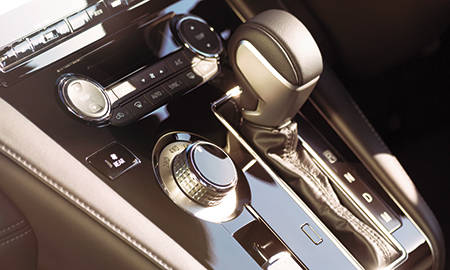

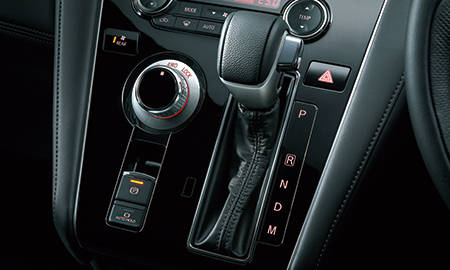

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.250	3.028	1.950	1.456	1.220	1.000	0.808	0.673	4.014

Available colors

black / black micawhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / Other PearlGold
