JDM Vehicle Catalog

Vehicle Specs

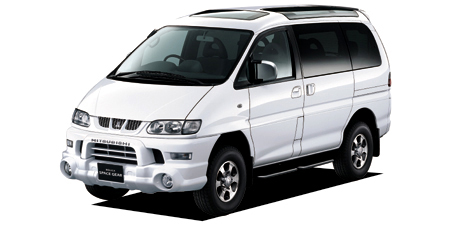

MITSUBISHI DELICA SPACE GEAR ACTIVE FIELD EDITION

MITSUBISHI DELICA SPACE GEAR

PD6W · ACTIVE FIELD EDITION

Description

Modification: ACTIVE FIELD EDITION
Chassis ID: PD6W
Dates releasing: 2005.11~
Base price, ¥: GH-PD6W
Body size: 4685x1695x2060
Interior (LxWxH): 2850x1575x1300
Wheelbase: 2800
Track f/r: 1440mm/1435mm
Full weight, kg: 1970
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 6G72
Type: V-type 6 cylinder SOHC 24-valves
Bore x stroke, mm: 91.1x76.0
Engine size, cc: 2972
Compression ratio: 9.0
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 185ps(136kW)/5500rpm
Max torque, Nm/rpm: 27.0kg m(265N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone torsion bar spring
Rear suspension: 5-link Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/80R15
Rear wheel: 225/80R15
Min turn diameter, m: 6.0

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.495	1.000	0.731	—	—	—	—	2.720

Available colors

black / black micawhite / White solidgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Cool Silver MetallicRedBlueDark cyanPearlGold
