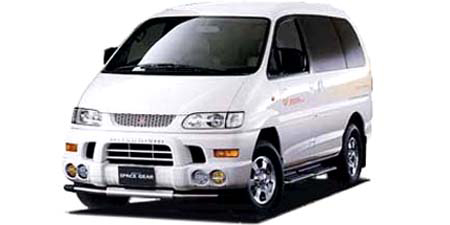

MITSUBISHI DELICA SPACE GEAR CHAMONIX

MITSUBISHI DELICA SPACE GEAR

PD8W · CHAMONIX

Description

Modification: CHAMONIX
Chassis ID: PD8W
Dates releasing: 1998.11~
Base price, ¥: KD-PD8W
Body size: 4685x1695x1965
Interior (LxWxH): 2850x1575x1205
Wheelbase: 2800
Track f/r: 1440mm/1435mm
Full weight, kg: ----
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 4M40
Type: inline 4 cylinder OHCIC-turbo (Diesel)
Bore x stroke, mm: 95.0x100.0
Engine size, cc: 2835
Compression ratio: 21.0
Fuel injection: 電子制御 type 分配型噴射ポンプ
Max power, hp/rpm: 140ps(103kW)/4000rpm
Max torque, Nm/rpm: 32.0kg m(313.8N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 75 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone torsion bar spring
Rear suspension: 5-link Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/80R15
Rear wheel: 225/80R15
Min turn diameter, m: 6.0

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.495	1.000	0.731	—	—	—	—	2.720

Available colors

blackwhite / Sofia WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
