JDM Vehicle Catalog

Vehicle Specs

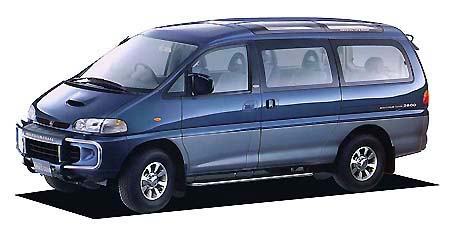

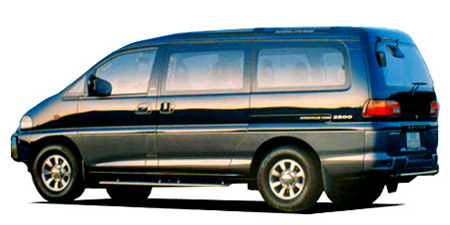

MITSUBISHI DELICA SPACE GEAR LONG SUPER EXCEED

MITSUBISHI DELICA SPACE GEAR

PB5W · LONG SUPER EXCEED

Description

Modification: LONG SUPER EXCEED
Chassis ID: PB5W
Dates releasing: 1994.5~
Base price, ¥: KD-PB5W
Body size: 4995x1695x1960
Interior (LxWxH): 3050x1575x1275
Wheelbase: 3000
Track f/r: 1445mm/1442mm
Full weight, kg: 1870
Body type: MV 1Box
Doors / seats: 4 door / 7

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4D56
Type: inline 4 cylinder OHCIC-turbo (Diesel)
Bore x stroke, mm: 91.1x95.0
Engine size, cc: 2476
Compression ratio: 21.0
Fuel injection: 分配型噴射ポンプ
Max power, hp/rpm: 105ps(77kW)/4200rpm
Max torque, Nm/rpm: 24.5kg m(240.3N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 66 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone torsion bar spring
Rear suspension: 5-link Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/70R15
Rear wheel: 205/70R15
Min turn diameter, m: 5.9

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.688	—	—	—	—	2.703

Available colors

blackwhite / Sofia WhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyan / Other Dark cyanPearlGold
