JDM Vehicle Catalog

Vehicle Specs

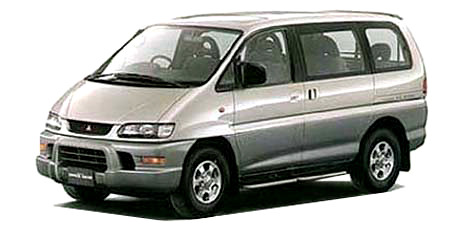

MITSUBISHI DELICA SPACE GEAR NEST BASIC

MITSUBISHI DELICA SPACE GEAR

PF8W · NEST BASIC

Description

Modification: NEST BASIC
Chassis ID: PF8W
Dates releasing: 1999.6~
Base price, ¥: KH-PF8W
Body size: ----x----x----
Interior (LxWxH): 3050x1575x1300
Wheelbase: 3000
Track f/r: 1440mm/1435mm
Full weight, kg: ----
Body type: MV 1Box
Doors / seats: 4 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: 特殊形状
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 4M40
Type: inline 4 cylinder OHCIC-turbo (Diesel)
Bore x stroke, mm: 95.0x100.0
Engine size, cc: 2835
Compression ratio: 21.0
Fuel injection: 電子制御 type 分配型噴射ポンプ
Max power, hp/rpm: 140ps(103kW)/4000rpm
Max torque, Nm/rpm: 32.0kg m(313.8N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 75 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング
Rear suspension: 5-link Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/80R15
Rear wheel: 225/80R15
Min turn diameter, m: 6.4

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold / Other Gold
