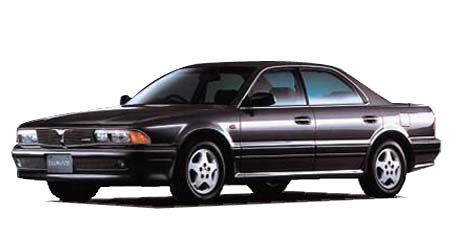

MITSUBISHI DIAMANTE 30R

MITSUBISHI DIAMANTE

F27A · 30R

Description

Modification: 30R
Chassis ID: F27A
Dates releasing: 1992.10~
Base price, ¥: E-F27A
Body size: 4740x1775x1420
Interior (LxWxH): 1855x1450x1140
Wheelbase: 2720
Track f/r: 1535mm/1530mm
Full weight, kg: 1680
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 6G72
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 91.1x76.0
Engine size, cc: 2972
Compression ratio: 10.0
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 210ps(154kW)/6000rpm
Max torque, Nm/rpm: 27.5kg m(269.7N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/60R15 94H
Rear wheel: 215/60R15 94H
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.551	1.488	1.000	0.685	—	—	—	—	2.176

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
