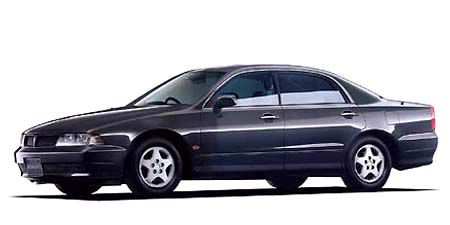

MITSUBISHI DIAMANTE ESPADA

MITSUBISHI DIAMANTE

F31A · ESPADA

Description

Modification: ESPADA
Chassis ID: F31A
Dates releasing: 1996.9~
Base price, ¥: E-F31A
Body size: 4785x1785x1435
Interior (LxWxH): 2030x1490x1160
Wheelbase: 2720
Track f/r: 1545mm/1535mm
Full weight, kg: 1470
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 6G73
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 83.5x76.0
Engine size, cc: 2497
Compression ratio: 10.0
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 200ps(147kW)/6000rpm
Max torque, Nm/rpm: 24.5kg m(240.3N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 72 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Multi-link
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/65R15 94H
Rear wheel: 205/65R15 94H
Min turn diameter, m: 5.6

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ◯

Navigation & sound

Navigation: ✓
Navigation device: CD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.789	2.057	1.421	1.000	0.731	—	—	—	3.865

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold / Other Gold
