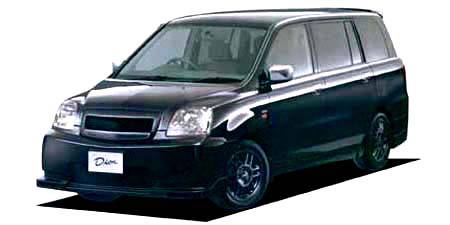

MITSUBISHI DION TOURER

MITSUBISHI DION

CR9W · TOURER

Description

Modification: TOURER
Chassis ID: CR9W
Dates releasing: 2000.8~
Base price, ¥: TA-CR9W
Body size: 4460x1695x1650
Interior (LxWxH): 2435x1420x1265
Wheelbase: 2705
Track f/r: 1470mm/1470mm
Full weight, kg: 1380
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: 4G63
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 85.0x88.0
Engine size, cc: 1997
Compression ratio: 10.3
Fuel injection: GDI(ガソリン筒内直接燃料噴射)
Max power, hp/rpm: 135ps(99kW)/5800rpm
Max torque, Nm/rpm: 18.7kg m(183N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R14
Rear wheel: 195/65R14
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.529	1.000	0.712	—	—	—	—	2.480

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
