JDM Vehicle Catalog

Vehicle Specs

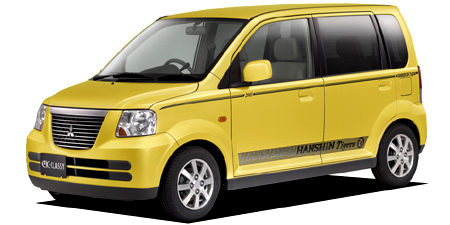

MITSUBISHI EK CLASSY HANSHIN TIGERS EDITION

MITSUBISHI EK CLASSY

H81W · HANSHIN TIGERS EDITION

Description

Modification: HANSHIN TIGERS EDITION
Chassis ID: H81W
Dates releasing: 2003.8~
Base price, ¥: UA-H81W
Body size: 3395x1475x1550
Interior (LxWxH): 1830x1220x1280
Wheelbase: 2340
Track f/r: 1295mm/1295mm
Full weight, kg: 820
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: 13 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3G83
Type: inline 3 cylinder SOHC 12-valves
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 10.2
Fuel injection: ECIマルチ(電子制御燃料噴射)
Max power, hp/rpm: 50ps(37kW)/6500rpm
Max torque, Nm/rpm: 6.3kg m(62N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トルクアーム type 3リンク
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R13
Rear wheel: 155/65R13
Min turn diameter, m: 4.4

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with MD player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.846	1.581	1.000	0.685	—	—	—	—	2.176

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold / Other Gold
