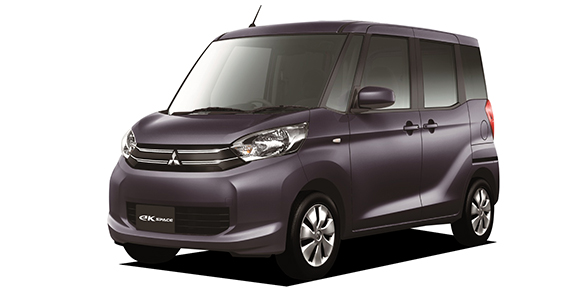

MITSUBISHI EK SPACE E

MITSUBISHI EK SPACE

B11A · E

Description

Modification: E
Chassis ID: B11A
Dates releasing: 2014.4~
Base price, ¥: DBA-B11A
Body size: 3395x1475x1775
Interior (LxWxH): 2235x1320x1400
Wheelbase: 2430
Track f/r: 1300mm/1290mm
Full weight, kg: 970
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

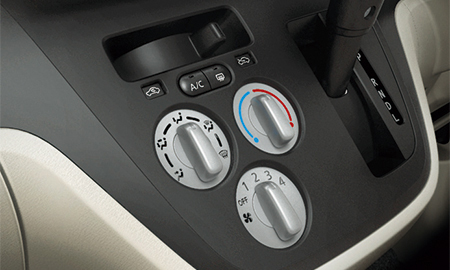

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

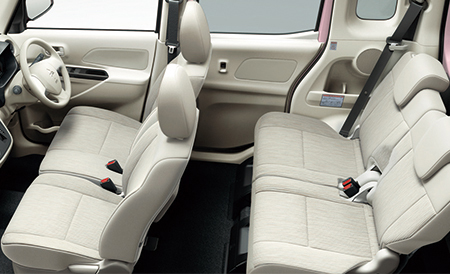

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3B20
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 65.4x65.4
Engine size, cc: 659
Compression ratio: 10.9
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 49ps(36kW)/6500rpm
Max torque, Nm/rpm: 6.0kg m(59N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: トルクアーム type 3リンク
Front brake: Ventilated disk
Rear brake: Drum

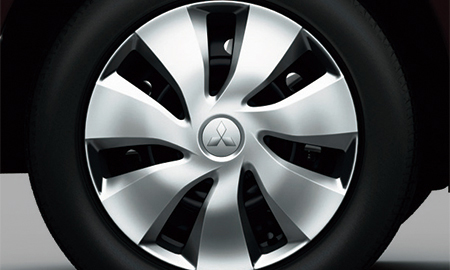

Front wheel: 155/65R14
Rear wheel: 155/65R14
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.007~0.550	—	—	—	—	—	—	—	—	3.771

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)Magenta / Other MagentaSilver / Cool Silver MetallicRedBlueDark cyanPearl / Beige metallicGold / Other Gold
