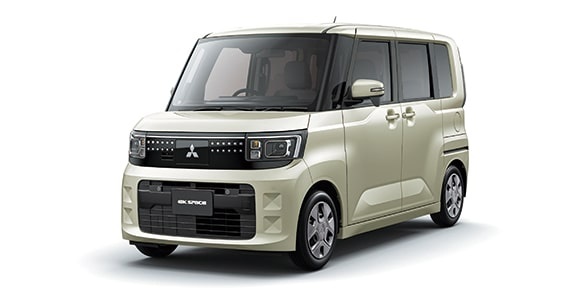

MITSUBISHI EK SPACE M

MITSUBISHI EK SPACE

BA1A · M

Description

Modification: M
Chassis ID: BA1A
Dates releasing: 2025.10~
Base price, ¥: 5BA-BA1A
Body size: 3395x1475x1785
Interior (LxWxH): 2315x1335x1400
Wheelbase: 2495
Track f/r: 1300mm/1290mm
Full weight, kg: 960
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ACTIVE スタビリティコントロール(ASC)

Comfort

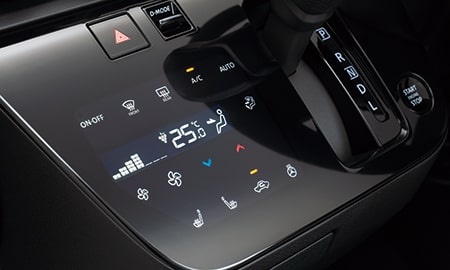

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

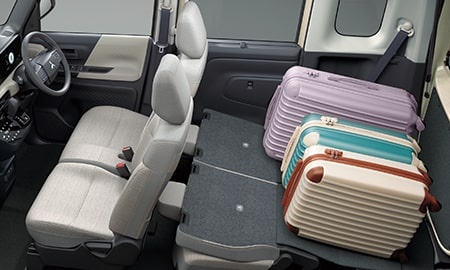

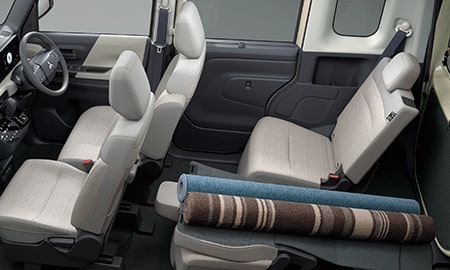

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: BR06
Type: 3 cylinder DOHC 12-valves
Bore x stroke, mm: 62.7x71.2
Engine size, cc: 659
Compression ratio: 12.0
Fuel injection: 電子
Max power, hp/rpm: 52ps(38kW)/6400rpm
Max torque, Nm/rpm: 6.1kg m(60N m)/3200rpm
Supercharger: ×
Fuel tank, liters: 27 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/65R14
Rear wheel: 155/65R14
Min turn diameter, m: 4.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.411~0.404	—	—	—	—	—	—	—	—	2.411

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)Magenta / Other MagentaSilver / Other SilverRed / Other RedBlueDark cyan / Other Dark cyanPearl / Beige metallicGold
