MITSUBISHI EK WAGON T SAFETY PACKAGE

MITSUBISHI EK WAGON

B11W · T SAFETY PACKAGE

Description

Modification: T SAFETY PACKAGE
Chassis ID: B11W
Dates releasing: 2017.10~
Base price, ¥: DBA-B11W
Body size: 3395x1475x1620
Interior (LxWxH): 2085x1295x1280
Wheelbase: 2430
Track f/r: 1300mm/1290mm
Full weight, kg: 910
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

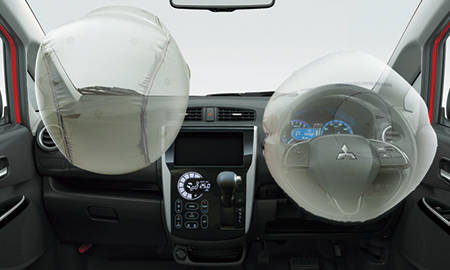

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ACTIVE スタビリティコントロール[ASC]

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard

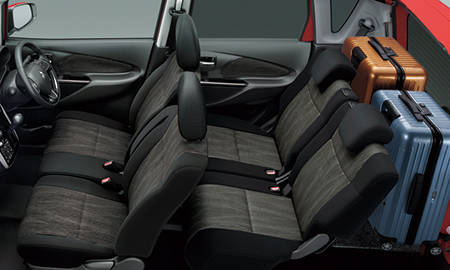

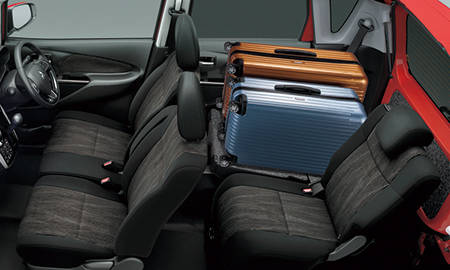

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3B20
Type: 3 cylinder DOHC 12-valves IC-turbo
Bore x stroke, mm: 65.4x65.4
Engine size, cc: 659
Compression ratio: 9.0
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 64ps(47kW)/6000rpm
Max torque, Nm/rpm: 10.0kg m(98N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: トルクアーム type 3リンク
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/65R14
Rear wheel: 155/65R14
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.007~0.550	—	—	—	—	—	—	—	—	3.771

Available colors

black / black micawhite / White solidgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)Magenta / Other MagentaSilver / Cool Silver MetallicRed / Other RedBlueDark cyanPearl / Beige metallicGold / Other Gold
