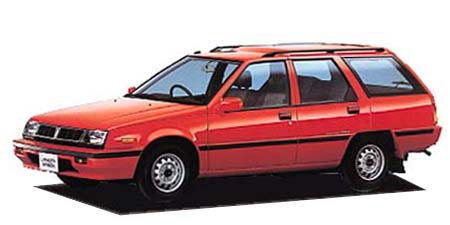

MITSUBISHI LANCER WAGON CX

MITSUBISHI LANCER WAGON

C37W · CX

Description

Modification: CX
Chassis ID: C37W
Dates releasing: 1990.10~
Base price, ¥: E-C37W
Body size: 4185x1635x1460
Interior (LxWxH): 1860x1365x1125
Wheelbase: 2385
Track f/r: 1410mm/1360mm
Full weight, kg: 1110
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ツイン
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G37B
Type: inline 4 cylinder OHC
Bore x stroke, mm: 80.6x86.0
Engine size, cc: 1755
Compression ratio: 9.0
Fuel injection: ECIマルチ(電子制御燃料噴射)
Max power, hp/rpm: 94ps(69kW)/5000rpm
Max torque, Nm/rpm: 14.6kg m(143.2N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 47 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut & Coil spring type Independent suspension
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/70R13 82S
Rear wheel: 175/70R13 82S
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.083	1.684	1.115	0.806	0.651	—	—	—	3.166

Available colors

blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
