Vehicle Specs

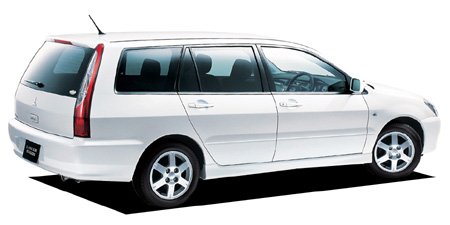

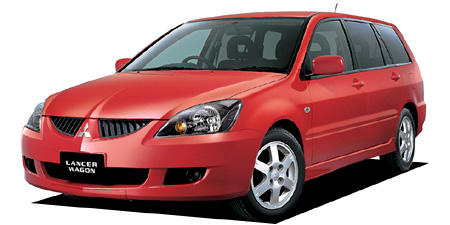

MITSUBISHI LANCER WAGON TOURING

MITSUBISHI LANCER WAGON

CS5W · TOURING

Description

Modification: TOURING
Chassis ID: CS5W
Dates releasing: 2004.4~
Base price, ¥: LA-CS5W
Body size: 4475x1695x1470
Interior (LxWxH): 1885x1425x1190
Wheelbase: 2600
Track f/r: 1470mm/1470mm
Full weight, kg: 1340
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

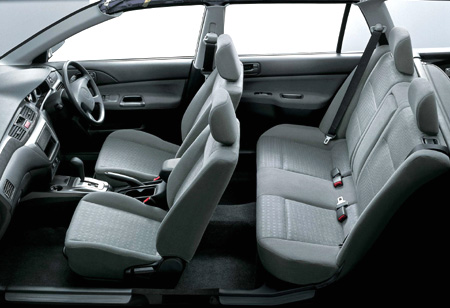

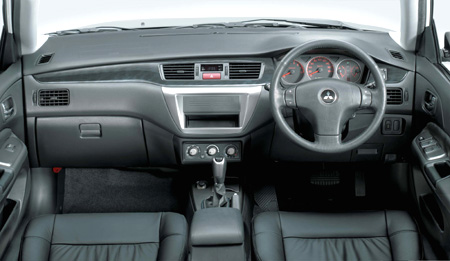

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4G93 GDI
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 81.0x89.0
Engine size, cc: 1834
Compression ratio: 10.5
Fuel injection: 筒内直接噴射
Max power, hp/rpm: 114ps(84kW)/5500rpm
Max torque, Nm/rpm: 15.8kg m(155N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 48 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/55R15
Rear wheel: 195/55R15
Min turn diameter, m: 5.0

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.319	1.620	1.260	1.000	0.700	0.445	—	—	2.588

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Cool Silver MetallicRed / Other RedBlueDark cyanPearl / Beige metallicGold
