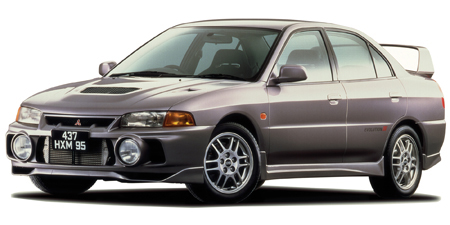

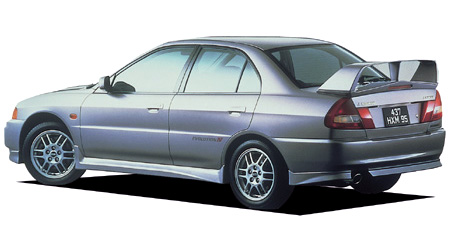

MITSUBISHI LANCER RS EVOLUTION IV

MITSUBISHI LANCER

CN9A · RS EVOLUTION IV

Description

Modification: RS EVOLUTION IV
Chassis ID: CN9A
Dates releasing: 1996.8~
Base price, ¥: E-CN9A
Body size: 4330x1690x1415
Interior (LxWxH): 1805x1430x1175
Wheelbase: 2510
Track f/r: 1470mm/1470mm
Full weight, kg: 1260
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

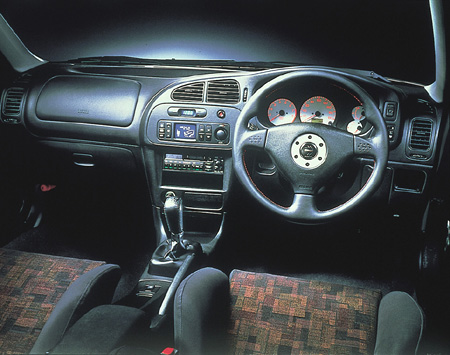

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×

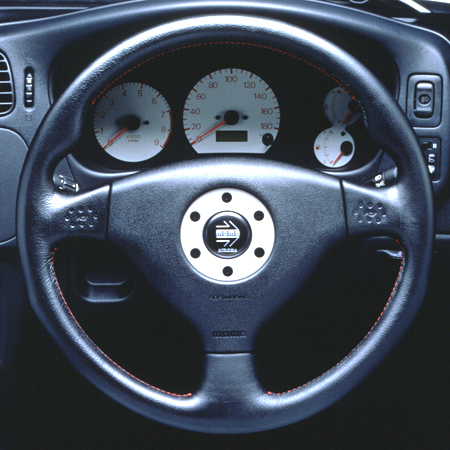

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

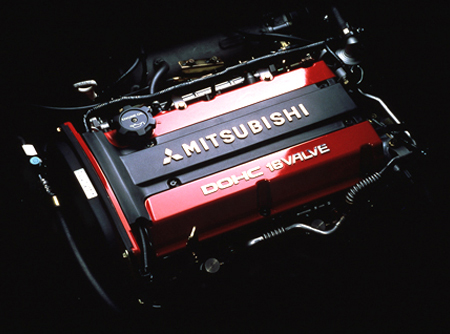

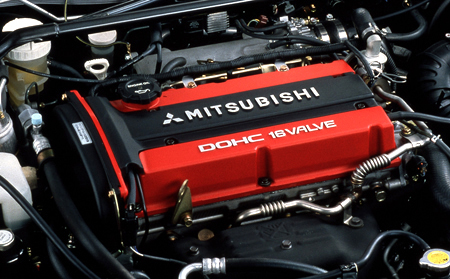

Engine

Model: 4G63 TURBO
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 85.0x88.0
Engine size, cc: 1997
Compression ratio: 8.8
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 280ps(206kW)/6500rpm
Max torque, Nm/rpm: 36.0kg m(353.0N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

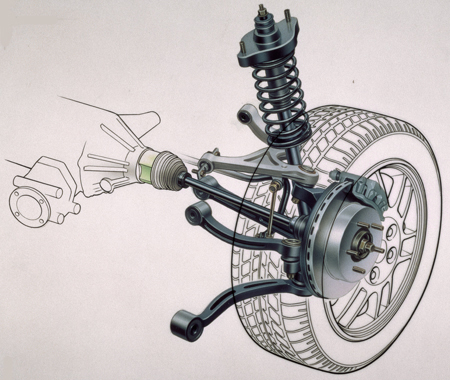

Steering & suspension

Steering: Power assist equipped rack&pinion

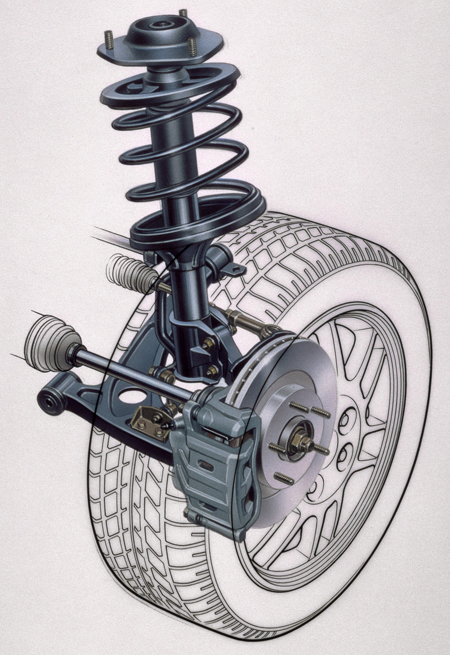

Front suspension: McPherson Strut
Rear suspension: マルチリンク

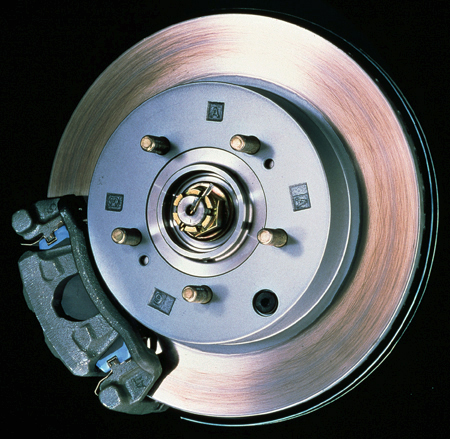

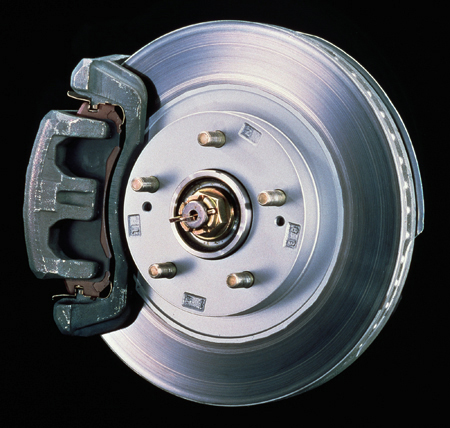

Front brake: Ventilated disk
Rear brake: Ventilated disk

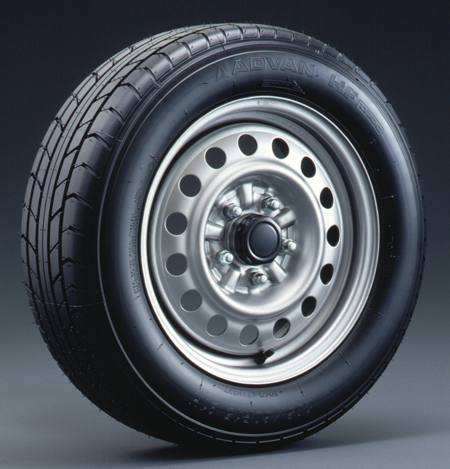

Front wheel: 205/60R15 91H
Rear wheel: 205/60R15 91H
Min turn diameter, m: 5.5

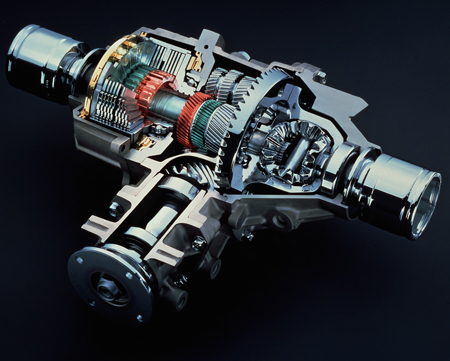

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.950	1.407	1.031	0.761	—	—	—	3.416

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
