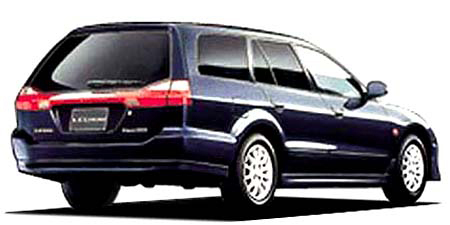

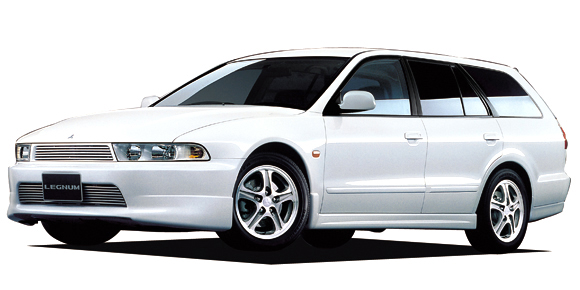

MITSUBISHI LEGNUM 24 CUSTOM

MITSUBISHI LEGNUM

EA3W · 24 CUSTOM

Description

Modification: 24 CUSTOM
Chassis ID: EA3W
Dates releasing: 2000.5~
Base price, ¥: GF-EA3W
Body size: 4725x1740x1440
Interior (LxWxH): 1870x1455x1190
Wheelbase: 2635
Track f/r: 1510mm/1505mm
Full weight, kg: 1420
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ◯
Toned glasses: ✓

Engine

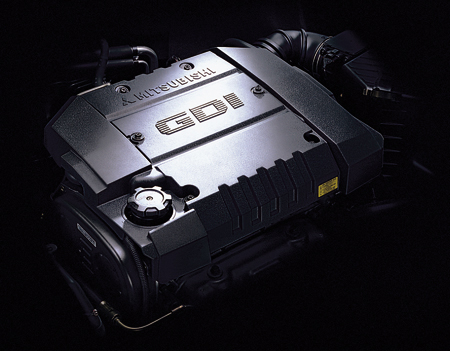

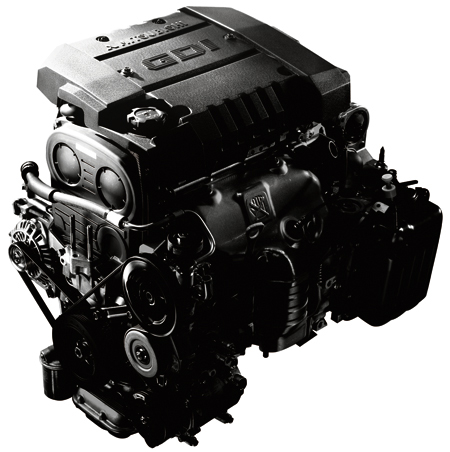

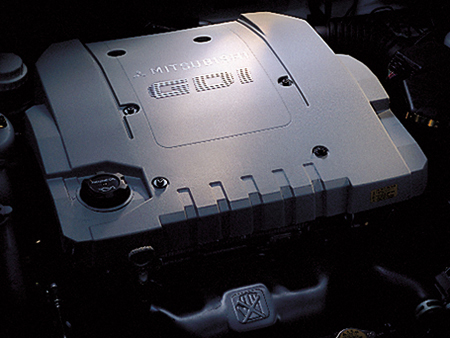

Model: 4G64(GDI)
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.5x100.0
Engine size, cc: 2350
Compression ratio: 11.5
Fuel injection: 筒内直接噴射
Max power, hp/rpm: 165ps(121kW)/5500rpm
Max torque, Nm/rpm: 23.5kg m(230N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 64 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion

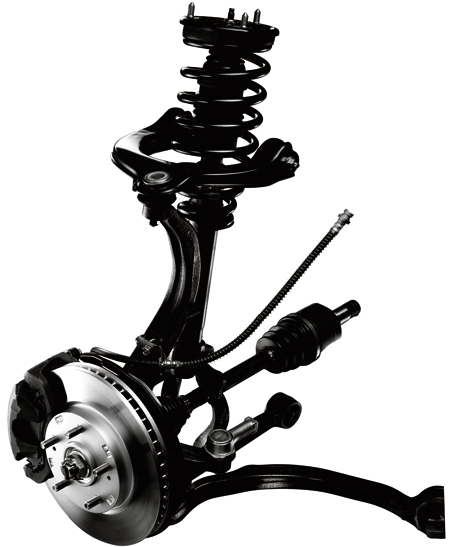

Front suspension: Multi-link
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.8

Gearbox

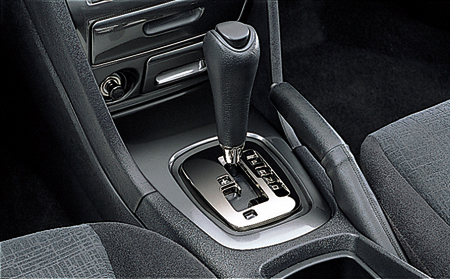

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.789	2.057	1.421	1.000	0.731	—	—	—	3.865

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
