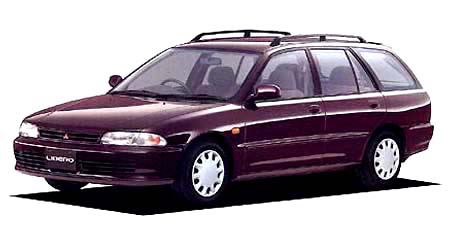

MITSUBISHI LIBERO SURGE

MITSUBISHI LIBERO

CB5W · SURGE

Description

Modification: SURGE
Chassis ID: CB5W
Dates releasing: 1994.10~
Base price, ¥: E-CB5W
Body size: 4270x1690x1470
Interior (LxWxH): 1755x1415x1175
Wheelbase: 2500
Track f/r: 1450mm/1420mm
Full weight, kg: ----
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4G93
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 81.0x89.0
Engine size, cc: 1834
Compression ratio: 9.5
Fuel injection: ECIマルチ(電子制御燃料噴射)
Max power, hp/rpm: 120ps(88kW)/6000rpm
Max torque, Nm/rpm: 16.2kg m(158.9N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut & Coil spring type Independent suspension (スタビライザ付)
Rear suspension: トーションビーム& Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/60R14 82H
Rear wheel: 185/60R14 82H
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.846	1.581	1.000	0.685	—	—	—	—	2.176

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
